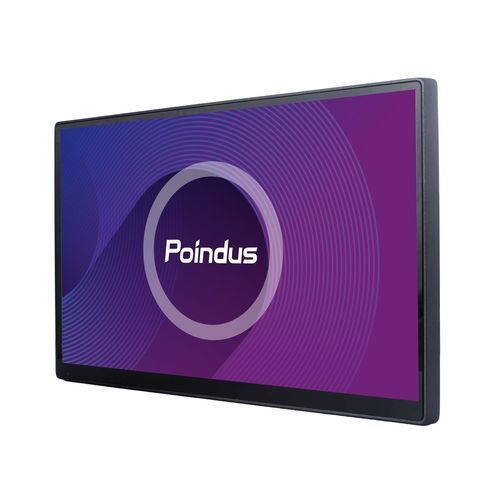

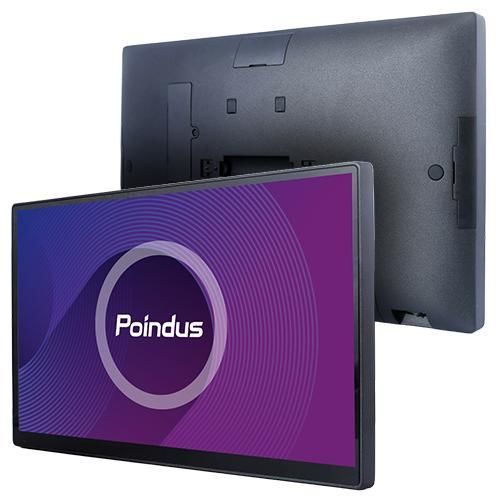

Industrial panel PC PP58

touch screenLCDTFT LCD

Product Overview
Panel PC designed to thrive in harsh environments and fit into any scenario. Advanced Performance Panel PC with Enhanced Cooling Innovation.

• Full range of CPUs from Celeron to Intel 12th Gen. Core i3/i5
• Aluminum die-casting structure for strong & stable operation
• Easy access/service M.2 SSD cover
• Rubber gasket frame sealing bezel design for IP-65 resistance
• Comprehensive dual-side mounting support of peripherals: MSR/Fingerprint/iButton/RFID/2D scanner readers/ 2×20 character LCM
• Support 10.1″ (1280×800 16:10 Widescreen) 2nd display, USB interface
• Innovative heat-dissipation fan-less operation design
• 4.8mm Super Slim Edge Bezel
• VESA 75/100 for Pole/Wall Mounting

Retail Ready Performance
With its modern and ultra-slim bezel design, the PP58 boasts a stunning widescreen display that seamlessly integrates style and functionality. The sleek Full HD widescreen format allows System Integrators to create intricate interfaces tailored to the specific needs of diverse applications in the retail, hospitality, and industrial sectors. The PP58 offers effortless integration of peripherals such as MSR, Second Display, and Customer Display, effectively meeting all project requirements.
PP58 delivers exceptional performance under heavy load with advanced cooling innovation.
Deliver the Power to Perform

• Reliable Intel Processing: Intel Celeron, 12th Gen. Core i3/i5
• Innovative Cooling Solution: Fanless Architecture, Maximum Performance
• IP65 Ingress Spill Proof: Front Panel IP65 (Ingress Protection) dust and waterproof protection
• Multiple Mount Options: Wall, Pole & Stand Mount Configurations

Stability & Performance
System Stability for Demanding Workloads. The PP58 Panel PC solution showcases a cutting-edge design, incorporating exceptional mechanical engineering and a groundbreaking heat-dissipation improvement of up to 12%. These advancements significantly enhance the Mean Time Between Failures (MTBF) and overall stability of the system, ensuring uninterrupted operations even under demanding workloads.
Specification

PP58 (PE24)
PP58 (PE26)
Main Board
Processor: PP58 (PE24): Intel® Elkhart Lake Celeron® Processor | PP58 (PE26): Intel® Alder Lake-P Platform, Core i5, Core i3
Chipset: CPU Integrated
System Memory: PP58 (PE24): 1 x SO-DIMM DDR4 slot, 4GB RAM as standard, Max. memory support up to 16GB | PP58 (PE26): 1 x 8GB DDR5 SO-DIMM memory (Max.support up to 32GB)
TPM: Intel F/W
Intel AMT: N/A (i5 CPU Only for PE26)
Display & Touch
LCD Size: 15.6″ 16:9 TFT LCD
Brightness: 250nits
Resolution: 1920 x 1080, Full HD
Touch: Slim bezel true-Flat PCAP multi-touch screen
Storage
HDD/SSD: 1 x 128GB M.2 SSD as standard
Panel I/O
LAN Port: 1 x Gigabit Ethernet by RJ-45
USB Port: 3 x USB 2.0, 3 x USB 3.1
COM Port: 2 x RJ48 (Support DC+0/5/12v by BIOS setting, default setting is 0v)
Cash Drawer: 1 x RJ11 (Support DC+12v or +24v (default)) port, supports 2 cash drawers
Type C: 1 x Type C
Speaker: HD Audio, 2W Speaker x 2
Power Switch: 1 x power on/off button
DC Input: 1 x Mini Din 4P (DC+19v only)
OS Support
Windows 10 (64bit) | Windows 11 (64bit) (Option) | Linux
Power Adapter (External Adapter)
PP58 (PE24): Voltage:+19VDC, Std. 65 watt | PP58 (PE26): Voltage:+19VDC, Std. 90 watt
Compliance
Certifications: CE, FCC, LVD, RoHS
Material: Main Unit: Plastic
Color: Main Unit: Black
Dimension (W x H x D mm): 361.6 x 218.7 x 35.5 mm
Environmental Conditions
Operating: 0°C ~ 40°C, 10% ~ 90% RH, non-condensing
Storage: -20°C ~ 60°C, 10% ~ 90% RH, non-condensing
Optional Accessories
MSR: 3-Track MSR USB interface
iButton: iButton reader
RFID: RFID reader
Fingerprint: Fingerprint reader
Scanner: 2D scanner
2nd Display 10.1″: 10.1" Resolution 1280 x 800 (16:10 wide screen) USB Type, Non Touch; Support NFC 13.56 MH, ISO 14443 A/B, ISO 15693, ISO 18092, FeliCa
LCM: 2×20 LCM, USB Type
VESA Mounting: VESA 75/100 for Pole/Wall Mounting (for Desktop Stand – See PT58A suggested below)
Key Features / Technical Specifications

• 15.6″ Full HD (1920 x 1080) TFT LCD, Slim bezel true-flat PCAP multi-touch
• Fanless, innovative heat-dissipation design
• IP65 front panel dust and waterproof protection
• Multiple mounting options: VESA 75/100 for wall, pole, stand
• Comprehensive peripheral support: MSR, iButton, RFID, Fingerprint, 2D scanner, LCM, 2nd display
• Wide operating temperature and humidity range
• Windows 10/11 and Linux OS support
• CE, FCC, LVD, RoHS certified
