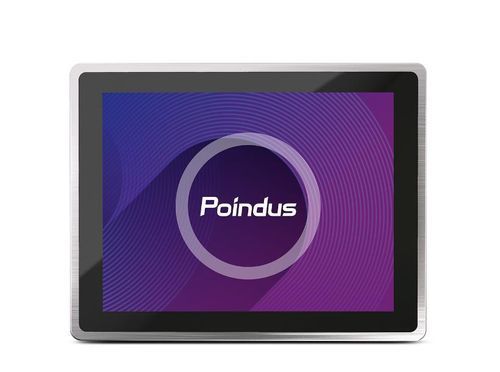

PCAP touchscreen panel PC SPPC-150

with touch screenmultitouch screenprojected capacitive touchscreen

Overview
The SPPC-150 is a 15" (4:3) industrial panel PC in a SUS 304 stainless steel enclosure with full-system IP65 protection. It features a 10-point PCAP multi-touch display, fanless thermal design, scalable Intel® processor options (Elkhart Lake Celeron to Raptor Lake-P i3/i5/i7), external-antenna Wi‑Fi/BT support via M.2 expansion, and flexible Wall / Pole / VESA mounting.

Key Features

• SUS 304 stainless steel enclosure
• Full-system IP65 ingress protection
• 15" 4:3 multi-touch display (1024 x 768, 400 cd/m²)
• Fanless operation for silent, low-maintenance use
• Supports Windows and Linux (Ubuntu 22.04)
• Rich I/O with ingress-protected connectors and smart cable management
• VESA 100 x 100, wall and pole mounting options

Product Highlights

• Scalable performance up to Intel® Core™ i7 (Raptor Lake-P) for demanding industrial tasks
• Durable stainless steel chassis for harsh commercial and industrial environments
• Wi‑Fi / Bluetooth support with external antennas and M.2 A/E Key slot for project modules
• Advanced heatsink design to maximize sustained CPU performance
• Display family: standard 15" (4:3); other sizes 21.5" and 32" available; custom sizes on request

Industrial Use & Application
The SPPC-150 is designed for continuous operation and mission-critical workflows: industrial HMI, process monitoring, machine control, kitchen display systems (KDS), cleanrooms and production zones. The responsive 10-point PCAP touchscreen provides accurate input for data-driven tasks.

Multimedia & I/O

• Integrated dual 2W speakers
• Ingress-protected I/O with sealed covers and smart cable management
• Customizable I/O: standard and digital I/O options for project-specific interfaces

Software & Integration
Supports Windows 10 / 11 (64-bit) and Linux (Ubuntu 22.04). Engineered for straightforward software integration in industrial automation and commercial applications.

Technical Specifications

• Model: SPPC-150
• System: PE24 = Intel® Elkhart Lake Celeron; PE26 = Intel® Raptor Lake-P (U-platform) up to i7-150U (up to 5.4 GHz)
• Memory: PE24 = 1 x SO-DIMM DDR4 (8GB standard, max 16GB); PE26 = 1 x SO-DIMM DDR5 (16GB standard, max 32GB)
• Intel® AMT: supported on i5 / i7 configurations
• TPM: Intel® Firmware TPM 2.0
• Display & Touch: 15" 4:3, 1024 x 768, 400 cd/m² LED, 10-point PCAP
• Storage: 1 x M.2 PCIe SSD
• Expansion: 1 x M.2 E Key (Wi‑Fi / BT module, project-based)
• Connectivity: 3 x USB 2.0; 3 x USB 3.1; 2 x RJ-48 COM (support DC+0/5/12V via BIOS, default 0V); 1 x USB-C (DP + PD); 1 x RJ45 GbE (10/100/1000, WOL, PXE); 1 x RJ11 (supports DC+12V or 24V default) for 2 cash drawers; 1 x 4-pin DIN lockable DC-IN
• Audio: 2 x 2W speakers
• Power: Input 100–240 Vac / 50–60 Hz; Output DC +19V, 90W AC adapter
• Mechanical: Full-system IP65; fanless; Net/Gross weight: 6.5 kg / 8.0 kg; Dimensions (W x H x D): 376.4 x 293.4 x 52.8 mm; Mounting: Wall / Pole / VESA 100 x 100 mm; Construction: Stainless Steel (SUS 304)
• Environmental: Operating 0°C ~ 40°C, 10% ~ 90% RH non-condensing; Storage -20°C ~ 60°C
• Certification: CE / FCC / LVD
• OS Support: Windows 10 / 11 (64-bit), Linux (Ubuntu 22.04)
