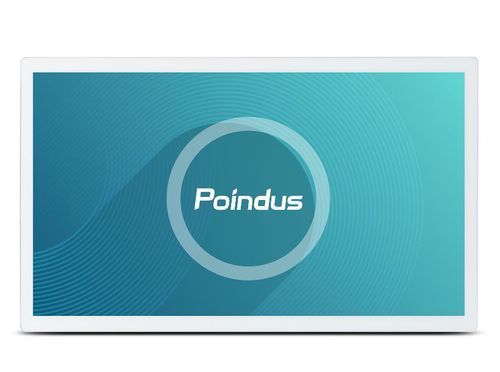

Multitouch screen panel PC PPC-238 Medical

widescreentouch screenPCAP touchscreen

Overview
This PPC-238 Medical is a 23.8" Full HD medical-grade panel PC designed for clinical environments. It features front-panel IP65 ingress protection, fanless operation and an aluminum frame with sheet metal chassis. The one-panel design supports accurate data input, transmission and real-time information delivery to frontline healthcare users.

Key features

• Onboard Intel® Alder Lake-P U-series Core i3 & Core i5 CPUs (PE26 platform).
• Complies with EN 60601-1 and EN 60601-1-2 medical safety and EMC standards.
• Intel F/W TPM 2.0 included.
• 10-point PCAP multi-touch for precise touchscreen interactions.
• Front panel IP65 ingress protection for clinical cleaning protocols.
• Fanless design for silent, maintenance-friendly operation.
• VESA 100×100 mounting for wall, pole or custom installations.
• Project-based WiFi/BT via M.2 A/E Key slot and external antennas.

Product highlights

• 23.8" Full HD (1920 x 1080) LED display, 350 cd/m² brightness.
• Front IP65 ingress protection suitable for clinical and sterile areas.
• Advanced heatsink design to maintain performance in fanless configuration.
• VESA-compliant (100 × 100) mounting for versatile installations.
• CE / FCC / LVD certifications and compliance with EN 60601-1 and EN 60601-1-2.

Versatile Panel PC Solution
The PPC Medical family supports multiple project requirements with standard display sizes (21.5" and 23.8") and custom sizes available on demand to meet specific clinical deployment needs.

Maximize performance
Optional Intel® Core i5 (Alder Lake-P) provides enhanced multitasking and fast data processing for demanding medical applications.

Powerful performance and expandability
Supports Intel® Alder Lake-P platform with Core i3 and Core i5 options, 1 x SO-DIMM DDR5 slot (8 GB standard, up to 32 GB), storage options including M.2 PCIe SSD or 2 x 2.5" SSD (RAID 0/1 project-based), and an M.2 E Key slot for WiFi/BT modules.

Easy integration
Compatible with Windows 10 / 11 (64-bit) and Linux distributions (e.g. Ubuntu 22.04) for easy integration into healthcare IT environments.

Designed for precise, confident touch
Responsive 10-point PCAP multi-touch ensures accurate and reliable touchscreen input in clinical workflows.

Wireless connectivity
Project-based M.2 A/E Key support and external antenna options provide reliable WiFi and Bluetooth connectivity for hospital networks.

Application scenarios
Suitable for hospital front desks, medical carts, bedside terminals, sterile processing areas and other clinical settings requiring medical-grade touch systems.

Versatile mounting solutions
Flexible mounting options include wall and pole mounts to minimize footprint and optimize workspace in constrained clinical environments.

Technical specifications

• System Information: PE26 platform; Intel® Alder Lake-P U-platform supporting Core i3 (up to 4.4 GHz) and Core i5 (up to 4.4 GHz).
• System Memory: 1 x SO-DIMM DDR5 slot; 8 GB RAM standard; up to 32 GB supported.
• Intel® AMT: Supported with i5 CPU (platform-dependent).
• TPM: Intel® F/W TPM 2.0.
• Display & Touch: 23.8" Full HD (1920 x 1080), 350 cd/m² LED, 10-point PCAP multi-touch.
• Storage: 1 x M.2 PCIe SSD or 2 x 2.5" SSD for RAID 0/1 (project-based).
• Expansion: 1 x M.2 E Key (for WiFi/BT, project-based).
• Connectivity: 3 x USB 2.0; 3 x USB 3.1; 2 x RS-232/COM (RJ-48) supporting DC+0/5/12V by BIOS setting (default 0V); 1 x USB Type-C (DP + PD); 1 x RJ45 Gigabit Ethernet (10/100/1000M) with WOL and PXE; 1 x RJ11 supporting DC +12V or 24V (default) for 2 cash drawers; 1 x 4-pin DIN with lock for DC-IN.
• Audio: 2 x 2W speakers.
• Power Requirement: Input 100 ~ 240 Vac / 50 ~ 60 Hz; Output DC +19V via 90W AC-to-DC adapter.
• Mechanical & Construction: Front panel IP65; fanless operation; net/gross weight: 8.2 kg / 10 kg; dimensions (W × H × D): 573.36 × 342.59 × 56.89 mm; mounting: Wall / Pole / VESA 100×100; construction: Aluminum frame with sheet metal chassis.
• Environmental: Operating temperature 0°C ~ 40°C, 10% ~ 90% RH non-condensing; Storage temperature -20°C ~ 60°C, 10% ~ 90% RH non-condensing.
• Certification: CE / FCC / LVD; complies with EN 60601-1 and EN 60601-1-2.
• OS Support: Windows 10 / 11 (64-bit), Linux (Ubuntu 22.04).
