Widescreen panel PC VariPPC 256 series

TFT LCDLED backlight15.6"

Product Overview

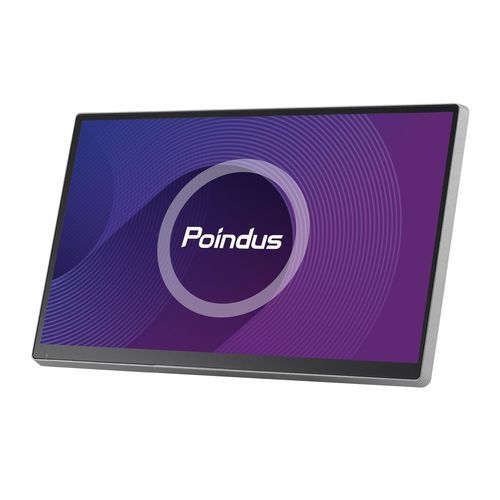

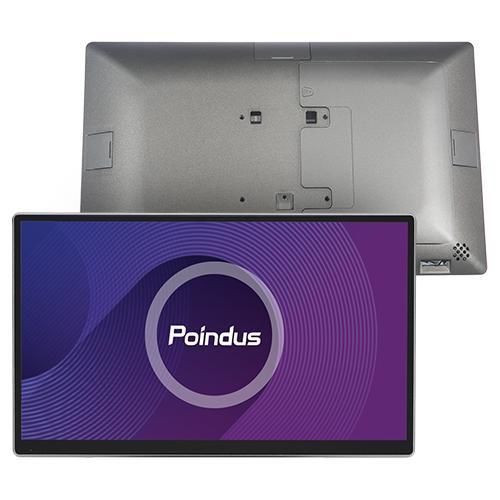

Panel PC designed to thrive in harsh environments and fit into any scenario. VariPPC 256A/256I delivers a new dimension with a 15.6″ 16:9 Wide TFT Full HD LCD (1920×1080) (LED backlight), 350 nits. The World’s Slimmest Edge Bezel Design (4.8mm). Intel 7th Generation to 12th Generation CPU Core i3, i5 & Celeron in a fanless architecture. Supports USB-C for function expansion (VariIO I/O Box). Extendable IO capability meets any project specification (VariIO I/O Box). VESA 75/100 bracket for PPC/Wall-Mounting Applications. Desktop Dual Hinged Stand for Extreme Flexibility (See VariPOS 256S/256A). Peripheral compatibility across the whole VariPOS 2 Series: 2D Scanner, RFID, MSR, iButton & Fingerprint. TSE Adapter for VariPOS (KassenSichV) Compliant.

• 15.6″ 16:9 Wide TFT Full HD LCD (1920×1080) (LED backlight), 350 nits
• The World’s Slimmest Edge Bezel Design (4.8mm)
• Intel 7th Generation to 12th Generation CPU (Core i3, i5 & Celeron, fanless)
• Supports USB-C for function expansion (VariIO I/O Box)
• Extendable IO capability (VariIO I/O Box)
• VESA 75/100 bracket for PPC/Wall-Mounting
• Desktop Dual Hinged Stand for Flexibility
• Peripheral compatibility: 2D Scanner, RFID, MSR, iButton & Fingerprint
• TSE Adapter for VariPOS (KassenSichV) Compliant

Design & Display
Ultra-slim bezel (4.8mm) for a sleek and modern 15.6″ Full HD widescreen design. Fan-less architecture and protection against moisture, dust, and extreme temperatures. Wide array of connectivity, processing, and mounting options. Suitable for HMI, automation, retail, hospitality, and industrial applications.
Display Features
Full HD display optimized for modern applications. Vivid high definition picture quality enhances performance in any scenario. Accurate screen colors and high resolution imagery. Enables advanced graphical user interfaces for complex and image-intensive applications.
Performance & Mounting
Multiple mount options: Wall, Pole & Stand Mount Configurations. Intel Core 7th to 12th Generation CPU (Core i3, i5 & Celeron, fanless). Silent running & prolonged lifespan. Shared peripherals across the VariPOS 2 Series Family. TSE/KassenSichV Compliance for German Fiscal Regulations.
Peripherals
Cross compatible peripherals across the VariPOS 2 Series. Includes MSR, iButton, FingerPrint, RFID & 2D Scanner. Reduces peripheral inventory and eases deployment.
USB-C Expansion
VariIO I/O Box Advanced Scalability: supports additional LAN, COM & Powered USB. Connects via a single custom high-speed USB Type C connector. Independently mountable for extreme scalability. Customizable to meet connectivity requirements.
Mounting Solutions
Versatile mounting options to minimize technology footprint and maximize work area. Modern attractive environment for any business.
Service & Maintenance
Advanced computing power with a hardened display. Modular solution for maximum uptime and easy customization. Quick swap out components for multiple configurations. USB-C support for advanced I/O connectivity. Easy to deploy and support, saving engineer time and training resources. Extended lifespan through easy maintenance.
Specifications
Main Board: VariPPC 256i (PE17), VariPPC 256A (PE24), VariPPC 256A (PE26)
Processor: Intel Core i5/i3/Celeron (7th-12th Gen), Alder Lake-P Platform
Chipset: CPU Integrated
System Memory: 1 x SO-DIMM DDR4 slot, 4GB RAM standard, up to 16GB (PE17/PE24); 1 x 8GB DDR5 SO-DIMM, up to 32GB (PE26)
TPM: Intel F/W
Intel AMT: i5 CPU Only
Display & Touch: 15.6″ 16:9 TFT LCD (LED backlight), Slim-Edge 4.8mm Bezel, 1920 x 1080 Full HD, 350 Nits, True Flat Projected Capacitive Technology
Storage: 1 x SATA III (2.5”); or M.2 Storage (Option)
Panel I/O: 1 x Gigabit Ethernet by RJ-45, 2 x USB 3.0 (PE17), 3 x USB 2.0 + 3 x USB 3.1 (PE24/PE26), 2 x RJ48 COM (PE24/PE26), 1 x RJ11 Cash Drawer (PE24/PE26), 1 x Type C (PE24/PE26), HD Audio, 2W Speaker x 2, 1 x power on/off button, 1 x MiniDin 4P (DC +19v only)
VariIO I/O Box & Expansion (Optional): 1 x RJ-11 Cash Drawer, 1 x Gigabit Ethernet, 2 x USB 3.0, 4 x USB 2.0, 2 x DC+12v Powered USB, 1 x DC+24v Powered USB, 4 x RS-232 COM, 1 x Type C Display Port
OS Support: Win 10 (64bit) / Win 7 (32bit/64bit) (PE17); Windows 10 (64bit) / Windows 11 (64bit) (Option) / Linux (PE24/PE26)
Power Adapter: +19VDC, Std. 90 watt (PE17/PE26), 65 watt (PE24), PUSB uses 180 watt adapter
Compliance: CE, FCC, LVD, RoHS
Protection: IP56 on front panel
Material: Main Unit: Die-Cast Aluminum
Color: Space Gray / Black
Dimensions: PPC: 362.8 x 219.9 x 34 mm; POS: 362.8 x 304 x 175.3 mm
Environmental: Operating 0°C ~ 40°C, 10% ~ 90% RH; Storage -20°C ~ 60°C, 10% ~ 90% RH
Optional Accessories: MSR (ISO 3-Tracks Slim MSR USB Type), iButton (Dallas Key Reader, USB Type), RFID (13.56Mhz USB Type), Fingerprint (DigitalPersona U.are.U 4500 Module, USB Type), 2D scanner (USB Type)
Carton: L460 x 300 x H510 mm

Technical Specifications (Summary)

• 15.6″ 16:9 TFT LCD, Full HD (1920x1080), 350 nits
• 4.8mm ultra-slim bezel
• Intel 7th-12th Gen Core i3/i5/Celeron, fanless
• DDR4/DDR5 RAM, up to 32GB
• Multiple USB, LAN, COM, and cash drawer ports
• VESA 75/100 mounting, desktop stand
• IP56 front panel, die-cast aluminum
• OS: Windows 10/11, Linux
• Optional peripherals: MSR, iButton, RFID, Fingerprint, 2D scanner
