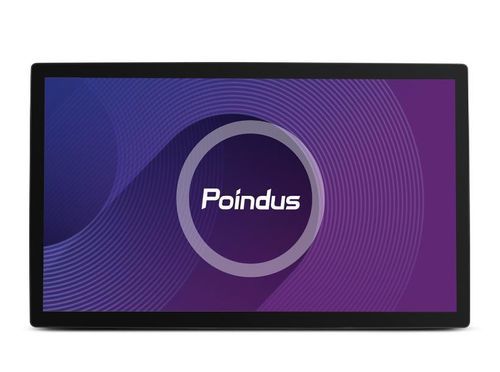

Multitouch screen panel PC PPC-238

touch screenPCAP touchscreenLED backlight

Overview
The PPC-238 is a cost-effective 23.8" 16:9 panel PC designed for retail, hospitality and industrial installations. It integrates a Full HD display, front IP65 ingress protection and an aluminum chassis with multiple mounting options for wall, pole or VESA setups.

Features

• Onboard Intel® Elkhart Lake Celeron (PE24) or Intel® Alder Lake-P / U-series (PE26) supporting Core i3 / i5 (Core i7 available project-based)
• 23.8" Full HD display (1920 x 1080) with 250 cd/m² LED backlight
• 10-point PCAP multi-touch
• Intel F/W TPM 2.0
• Front panel IP65 ingress protection
• Fanless design for silent, reliable operation
• VESA 100×100 compliance for flexible installation
• Optional M.2 A/E Key WiFi/Bluetooth module with external antennas (project based)
• Extension module design for project-based expansion

Product Highlights

• Modern 23.8" Full HD display suitable for commercial signage and POS
• Front IP65 protection for use in demanding commercial environments
• Performance options up to Alder Lake-P i5 (i7 project-based) with advanced thermal design
• Multiple mounting options (wall / pole / stand / VESA) to fit varied in-store layouts

Display Flexibility
Standard PPC series sizes: 21.5" (16:9), 23.8" (16:9) and 32" (16:9). Custom sizes available on demand.

Easy Integration & OS Support
Supports Windows 10 (64-bit), Windows 11 (64-bit) and Linux distributions (e.g. Ubuntu 22.04) for straightforward deployment in enterprise environments.

Application Scenarios
Optimized for retail and hospitality: point-of-sale counters, kitchen display systems (KDS), logistics management, quick-service restaurant counters and other commercial/industrial installations.

Specification
System Information: PE24 - Intel® Elkhart Lake Celeron; PE26 - Intel® Alder Lake-P / U-platform (Core i3 up to 4.4 GHz; Core i5 up to 4.4 GHz; Core i7 up to 4.7 GHz project-based).
Memory: PE24 - 1 x SO-DIMM DDR4 slot, 8GB standard, up to 16GB; PE26 - 1 x SO-DIMM DDR5 slot, 8GB standard, up to 32GB.
Intel® AMT: available with i5 / i7 CPU.
TPM: Intel® F/W TPM 2.0.
Display & Touch: 23.8" Full HD (1920 x 1080); 250 cd/m² LED backlight; 10-point PCAP multi-touch.
Storage: PE24 - 1 x M.2 PCIe SSD; PE26 - 1 x M.2 PCIe SSD or 2 x 2.5" SSD for RAID 0/1 (project based).
Expansion: 1 x M.2 E Key for WiFi/BT (project based).
Connectivity: 3 x USB 2.0, 3 x USB 3.1; 2 x RJ-48 COM ports (support DC+0/5/12V via BIOS setting, default 0V); 1 x Type-C (DP + PD); 1 x RJ45 Gigabit Ethernet (10/100/1000, WOL, PXE); 1 x RJ11 supporting DC +12V or 24V (default) to support 2 cash drawers; 1 x 4-pin DIN with lock for DC-IN; 2 x DB9 COM ports.
Audio: 2 x 2W speakers.
Power: Input 100–240Vac / 50–60Hz; Output DC +19V via 90W AC-to-DC adapter.
Mechanical & Construction: Front panel IP65; fanless; weight NW/GW: 7 kg / 9 kg; dimensions (W x H x D): 573.36 x 342.59 x 56.89 mm; mounting: Wall / Pole / VESA 100×100; aluminum frame with sheet metal chassis.
Environmental: Operating temperature 0°C ~ 40°C, 10% ~ 90% RH non-condensing; Storage -20°C ~ 60°C, 10% ~ 90% RH non-condensing.
Certification: CE / FCC / LVD.
OS Support: Windows 10 / 11 (64-bit), Linux (Ubuntu 22.04).

Technical specifications

• Model: PPC-238
• Display: 23.8" Full HD (1920 x 1080), 250 cd/m², LED backlight
• Touch: 10-point PCAP multi-touch
• CPU options: Intel® Elkhart Lake Celeron (PE24); Alder Lake-P / U-series i3 / i5 (PE26); i7 available project-based
• Memory: DDR4 up to 16GB (PE24) / DDR5 up to 32GB (PE26)
• Storage: M.2 PCIe SSD (option for 2 x 2.5" SSD RAID on PE26)
• Connectivity: multiple USB, COM ports, Type-C (DP+PD), Gigabit Ethernet, M.2 E Key
• Security: Intel F/W TPM 2.0
• Ingress protection: Front IP65
• Mounting: Wall / Pole / VESA 100×100
• Power: 19V DC via 90W adapter; Input 100–240Vac
• Operating temp: 0°C to 40°C
• Certifications: CE / FCC / LVD
• OS: Windows 10/11 (64-bit), Linux (Ubuntu 22.04)
