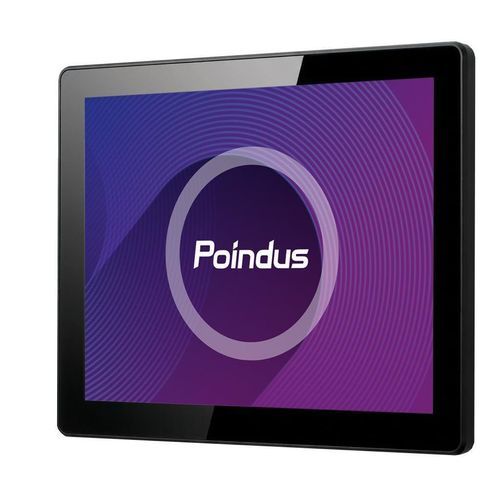

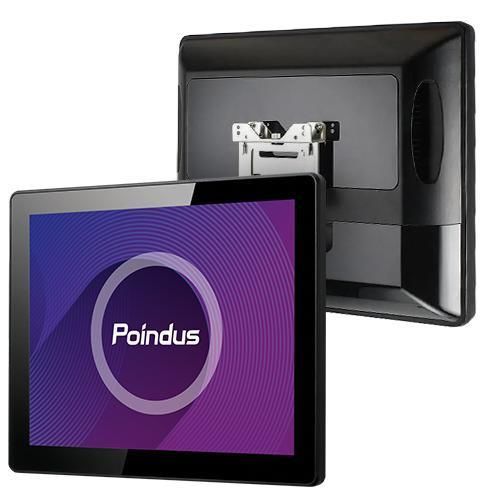

TFT LCD panel PC VariPPC series

LED backlightPCAP touchscreenmultitouch screen

Product Overview
Panel PC designed to thrive in harsh environments and fit into any scenario.

• Multi-application Panel PC
• Full range of CPUs from Celeron to Intel 12th Gen. Core i3/i5
• 15” (S series) or 19” True Flat P-Cap Touch Screen
• HDD or optional SSD storage option
• Modular designed Panel PC to satisfy multi-scenario requirements
• 8 colorful IO covers to suit any business environments
• Extensive Peripheral Connectivity – MSR, iButton, SCR, Fingerprint, RFID, 10.4″ 2nd Display
• Stylish and durable Aluminum chassis with Fanless Heat Elimination
• TSE Adapter for VariPOS (KassenSichV) Compliant

Key Features

• World’s first 15” True Flat Panel PC technology for busy environments that demand workspace flexibility
• Multiple mount options (Stand, Pole, Wall)
• 8 colorful IO covers for business environments

Processor & Platform

• Full range of Intel® Processors: Celeron, Core i3, Core i5 (12th Gen. Alder Lake-P Platform)
• TPM to protect IoT systems & supports Microsoft Windows platforms

Display & Touch

• VariPPC 750/850: 15″ 4:3 TFT LCD (LED backlight), 1024 x 768 resolution
• VariPPC 890: 19″ 5:4 TFT LCD (LED backlight), 1280 x 1024 resolution
• 350 nits brightness
• True Flat Projected Capacitive Technology
• Full IP66 (Ingress Protection) dust and waterproof protection

System Memory

• VariPPC 750: 1 x SO-DIMM DDR4 slot, 4GB RAM as standard, max. 16GB
• VariPPC 850/890: 1 x 8GB DDR5 SO-DIMM memory, max. 32GB

Storage

• 1 x SATA III (2.5”) or M.2 Storage (Option)

Panel I/O

• 1 x Gigabit Ethernet by RJ-45
• 3 x USB 2.0, 3 x USB 3.1
• 3 x COM (COM 1/2: RG48 Support DC to 5/12v by BIOS Setting, Default Setting is 0v, Com3: DB9)
• 1 x RJ11 (Support DC+12v or +24v (default)) port, supports 2 cash drawers
• 1 x DB-15 VGA Port (Power enable by BIOS setting, default disabled)
• 1 x Type C
• HD Audio, 2W Speaker x 2
• 1 x power on/off button
• 1 x Mini Din 4P (DC+19v only)

VariIO I/O Box & Expansion (Optional)

• 1 x RJ-11 (Support DC +12V or +24V (default)) port supports 2 cash drawers
• 1 x Gigabit Ethernet by RJ-45
• 2 x USB 3.0; 4 x USB 2.0
• 2 x DC+12v Powered USB, 1 x DC+24v Powered USB
• 4 x RS-232 (jumper setting, support DC+0/5/12v, default setting is 0v)
• 1 x Type C

OS Support
Windows 10 (64bit), Windows 11 (64bit) (Option), Linux
Power Adapter (External Adapter)
VariPPC 750: Voltage:+19VDC, Std. 65 watt (*PUSB will use 180 watt adapter)
VariPPC 850/890: Voltage:+19VDC, Std. 90 watt (*PUSB will use 180 watt adapter)
Compliance
CE, FCC, LVD, RoHS
Material
Main Unit: Die-Cast Aluminum
Color
Main Unit: Space Gray / Black
Dimensions (W x H x D mm)
15″ – 370 x 300 x 236 mm (POS) / 370 x 287 x 55 mm (PPC)
19″ – 446 x 363 x 276 mm (POS) / 446 x 377 x 70.4 mm (PPC)
Environmental Conditions
Operating: 0°C ~ 40°C, 10% ~ 90% RH, non-condensing
Storage: -20°C ~ 60°C, 10% ~ 90% RH, non-condensing
Optional Accessories (Excluding VariPPC 890)

• MSR: ISO 3-Tracks Slim MSR USB Type
• iButton: Dallas Key Reader, USB Type
• RFID: 13.56Mhz USB Type
• Fingerprint: DigitalPersona U.are.U 4500 Module, USB Type
• Scanner: 2D scanner, USB Type

Packaging
L460 x 300 x H510 mm

Rich Applications for Digital Transformation
Stylish appearance for advanced software requirements and performance-oriented applications. With VESA Mount can be located anywhere required. Suitable for F&B or any retail scenario.

Seamless Service with Modular Design
Robust build for long lifespan; modular design reduces rollout complexity and simplifies maintenance.

Outstanding Extendibility with Companion Peripherals
15” and 19” counter POS and Panel PC solutions. Complete hospitality and retail IO interface. Modularized structure, compliant with peripherals: MSR, I-Button, VFD, RFID, Fingerprint, etc.

Technical Specifications

• Processor: Intel® Celeron® (750), Intel® Alder Lake-P Platform Core i5/i3 (850/890)
• Chipset: CPU Integrated
• System Memory: DDR4/DDR5, up to 16GB/32GB
• TPM: Intel F/W
• Intel AMT: i5 CPU Only (850/890)
• Display: 15”/19” TFT LCD, LED backlight
• Resolution: 1024x768 (15”), 1280x1024 (19”)
• Brightness: 350 nits
• Touch: True Flat Projected Capacitive
• Storage: 1 x SATA III (2.5”) or M.2 (Option)
• LAN: 1 x Gigabit Ethernet
• USB: 3 x USB 2.0, 3 x USB 3.1
• COM: 3 x COM (2 x RG48, 1 x DB9)
• Cash Drawer: 1 x RJ11, supports 2 drawers
• VGA: 1 x DB-15
• Type C: 1 x
• Speaker: 2 x 2W
• Power: 1 x Mini Din 4P (DC+19v only)
• OS: Windows 10/11 (64bit), Linux
• Certifications: CE, FCC, LVD, RoHS
• Material: Die-Cast Aluminum
• Color: Space Gray / Black
• Dimensions: 15″ – 370 x 300 x 236 mm (POS) / 370 x 287 x 55 mm (PPC); 19″ – 446 x 363 x 276 mm (POS) / 446 x 377 x 70.4 mm (PPC)
• Operating Temp: 0°C ~ 40°C
• Storage Temp: -20°C ~ 60°C
• Optional Accessories: MSR, iButton, RFID, Fingerprint, Scanner
