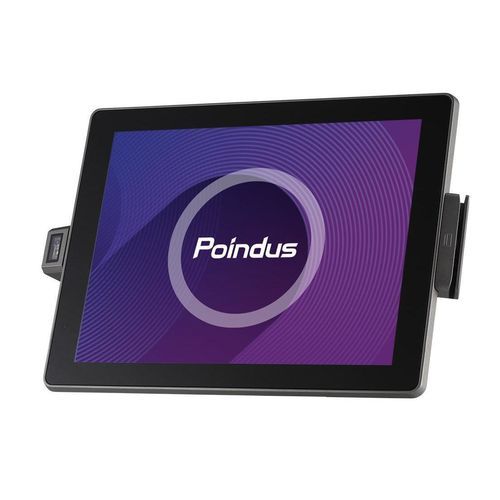

TFT LCD panel PC VariPPC 2 series

LED backlightPCAP touchscreenmultitouch screen

Product Overview
Panel PC designed to thrive in harsh environments and fit into any scenario.

• Intel 6th to 12th Generation Celeron i3, i5 high-end processors in a fanless structure.
• True flat 15” 4:3 / 17″ 5:4 LCD (LED backlight), 400 nits with IP66 protection.
• All in One POS configuration available.
• High speed Type C interface for customizable IO box to meet project specification.
• 1 x 24V, 2 x 12V Powered USB for retail peripherals (IO box) (Option).
• Quick SWAP IO box for easy maintenance.
• Peripheral compatibility across the whole VariPOS 2 Series: MSR, iButton, Fingerprint, RFID.
• TSE Adapter for VariPOS (KassenSichV) Compliant

All in One Mountable Aesthetic Panel PC
Designed for Diverse Applications
VariPPC 250i durability and flexibility meets the demand with Pole- or Wall mountable options and frees up space for application, especially in hospitality & retail scenario. The aesthetic appearance & slim panel configures All in One POS function can build your business to a higher level elegantly.
Deliver the Power to Perform

• Supports Microsoft Windows platform from POS Ready 7 to Windows 10 (32/64bit) ensures compatibility with your preferred Windows software solution.
• Fan-less architecture has the benefit of silent running and prolongs the life of the terminal, ensuring a great return on investment.
• Intel Core processors protect IoT systems and data through hardware- and software-based security hardening, keeping connected devices secure.
• The I/O provides everything you would expect from a high performance POS terminal including Powered USB for your retail peripherals.
• Combined with Front Panel IP66 (Ingress Protection) dust and waterproof protection, is perfectly suited for the rigors of hospitality and retail environments.

High Speed USB Type C Connector
Redefining Service
The flexibility of VariPPC 250i transforms any retail spaces into versatile pay points and strategic touch points with the customizable I/O box which connects all your devices through a single high speed USB Type C connector maintaining high I/O transfer rates.
The independently mountable I/O box for Panel PC configuration ensures a clutter-free point of sale station with advanced cable management; overcoming project limitations with advanced customization options.
Poindus Retail-hardened solutions help retailers maintain high uptime ensuring transactions are completed and minimize the need for technical after-service.

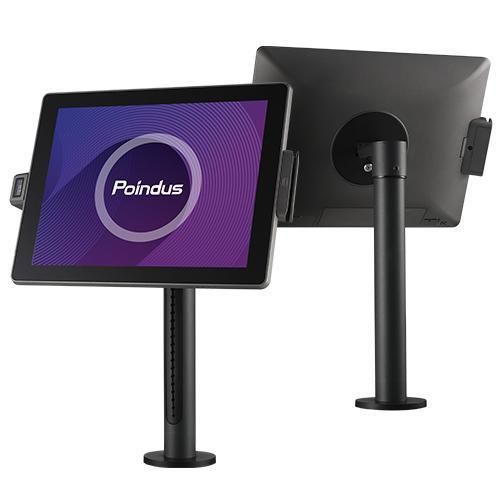

Retail Hardened Pole Mounted POS designed for the demands of the retail & hospitality world
An Ideal Retail-Ready Solution with Advanced I/O Customization
Independently mountable I/O box for Panel PC configuration provides clutter-free point of sale stations with advanced cable management.
The extendable I/O box supports for all the retail peripheral products to establish a complete retail environment and level up your sales force.
Overcome project limitations whatever the deployment, Check-out, interactive signage or self-service kiosk.
Efficient Service Benefit with Quick Swap & Maintenance
Simplified Installation and Serviceability has been designed in to the VariPPC 250i to provide quick and easy service for routine maintenance schedules, significantly reducing engineer onsite visit time.
The quick service design reduces downtime and is easy to clean and maintain for the user; reducing service resources and lowering the total cost of ownership (TCO).
Specification
Processor
VariPPC 250A/270A (PE24): Intel® Celeron®
VariPPC 250A/270A (PE26): Intel® Alder Lake-P Platform, Intel® Core™ i5, Intel® Core™ i3
Chipset: CPU Integrated
System Memory: 1 x SO-DIMM DDR4 slot, 4GB RAM as standard. Max. memory support up to 16GB. Easy access with secured cover for easy maintenance. (PE24) / 1 x 8GB DDR5 SO-DIMM memory. Max. support up to 32GB. (PE26)
TPM: Intel F/W
Intel AMT: i5 CPU Only
Display & Touch: 15″ 4:3 TFT LCD (LED backlight) or 17″ 5:4 TFT LCD (LED backlight), 400nits brightness, 15″ 1024 x 768 (4:3) or 17″ 1280 x 1024 (5:4) resolution, True Flat Projected Capacitive Technology, 10 point Multi-touch
Storage: 1 x SATA III (2.5”) or M.2 Storage (Option)
LAN Port: 1 x Gigabit Ethernet by RJ-45
USB Port: 3 x USB 2.0, 3 x USB 3.1
COM Port: 2 x RJ48 (Support DC+0/5/12v by BIOS setting, Default Setting is 0v)
Cash Drawer: 1 x RJ11 (Support DC+12v or +24v (default)) port supports 2 cash drawers
Speaker: HD Audio, 2W Speaker x 2
Power Switch: 1 x power on/off button
DC Input: 1 x Mini Din 4P (DC+19v only)
VariIO I/O Box & Expansion (Optional): 1 x RJ-11 (Support DC +12V or +24V (default)) port supports 2 cash drawers, 1 x Gigabit Ethernet by RJ-45, 2 x USB 3.0, 4 x USB 2.0, 2 x DC+12v Powered USB, 1 x DC+24v Powered USB, 4 x RS-232 (jumper setting, support DC+0/5/12v, default setting is 0v), 1 x Type C
OS Support: Windows 10 (64bit) / Windows 11 (64bit) (Option) / Linux
Power Adapter: Voltage:+19VDC, Std. 65 watt or 90 watt, *PUSB will use 180 watt adapter
Certifications: CE, FCC, LVD, RoHS
Protection: IP 66 on front panel
Material: Main Unit: Die-Cast Aluminum
Color: Space Gray / Black
Dimension (WxHxD mm): 15″ – 365.893 x 281.89 x 43.23 (PPC), 17″ – 396.93 x 329.47 x 42.75 (PPC)
Environmental Condition: Operating: 0°C ~ 40°C, 10% ~ 90% RH, non-condensing; Storage: -20°C ~ 60°C, 10% ~ 90% RH, non-condensing
Optional Accessories: MSR (ISO 3-Tracks Slim MSR USB Type), ibutton (Dallas Key Reader, USB Type), RFID (13.56Mhz USB Type), Fingerprint (DigitalPersona U.are.U 4500 Module, USB Type), Scanner (2D scanner, USB Type)
Packaging: Carton L 460 x W 300 x H 510 mm (15″) / L 495 x W 315 x H 550 mm (17″)
Key Features / Technical Specifications

• Intel 6th to 12th Gen Celeron/i3/i5 processors (fanless)
• True flat 15”/17” LCD, 400 nits, IP66 front
• All-in-one POS configuration
• High speed Type C customizable IO box
• Powered USB for peripherals (option)
• Quick SWAP IO box
• Peripheral compatibility: MSR, iButton, Fingerprint, RFID
• TSE Adapter for KassenSichV compliance
• Fanless, silent, long-life design
• Windows 7/10/11 & Linux support
• Die-cast aluminum, Space Gray/Black
• CE, FCC, LVD, RoHS certified
