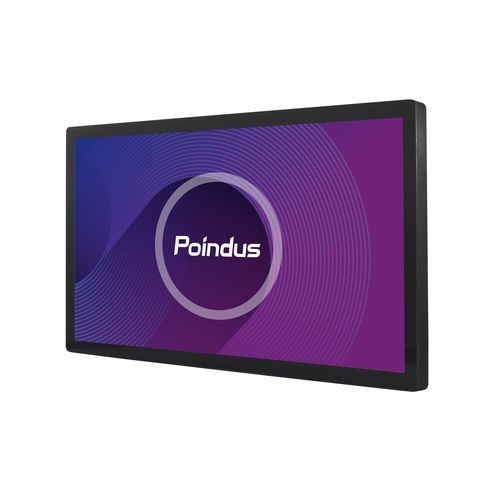

Multitouch screen panel PC PPC-215

LCDPCAP capacitive touch screen21.5"

Product Overview
Panel PC designed for busy Retail & Hospitality environments. The PPC-215 is an efficient and cost-effective panel PC solution designed for retail & hospitality applications. As a Kitchen Display System (KDS) solution, the PPC-215 is used in many restaurants to manage orders and streamline kitchen operations. It replaces paper tickets with real-time digital displays, improving order accuracy, efficiency, and communication between front-of-house and back-of-house. Features include real-time updates, analytics, and reduced waste, enhancing the overall customer experience and optimizing kitchen workflows. PPC-215 is currently deployed globally in various scenarios such as Gas Stations, Jewelers Stores, Pharmacies, and Kitchen Display Systems.

Main Features

• 21.5″ 16:9 Light Industrial Panel PC Solution
• 12th Gen Intel® Core™ Processor
• Intel® Elkhart Lake Celeron, Intel® Alder Lake i3, Intel® Alder Lake i5
• 10 points PCAP multi-touch support
• 3 x USB3.1, 3 x USB 2.0, 2 x COM, 1 x DP (by USB-C), 1 x LAN, 1 x CD
• Intel F/W TPM
• Front IP65, Fanless System & VESA Compliance
• WIFI / BT module / Peripherals (Project based)

Kitchen Display System (KDS) Application
Our Kitchen Display System delivers a 21.5″ Full HD display ensuring clear information is available in any area of the kitchen, helping restaurants streamline their kitchen operations, increase efficiency, and leading to better customer experiences. The system delivers the right information to the kitchen every time.

Performance & Reliability

• 12th Gen Intel® Core™ CPU
• Fan-less architecture for silent running and prolonged lifespan
• Front IP65 protection against condensation and water spray
• Multiple mount options: Wall, Pole & Stand (VESA 100 x 100)

Peripherals for Demanding Kitchens
Peripherals like a bump bar solution can be used in conjunction with the Kitchen Display System (KDS). The specialized keypad/touchpad allows kitchen staff to interact with the KDS system by “bumping” or marking orders as they are completed. The bump bar provides a tactile interface, enabling kitchen staff to easily navigate through the orders displayed on the KDS screens and mark them as prepared or ready for serving. This streamlines communication between the kitchen and the serving staff, ensuring efficient order flow and minimizing delays. The bump bar is designed for durability and can be customizable to match specific kitchen workflows.

Versatile Mounting Solutions
Minimize your technology footprint and maximize your work area in the constraints of any space-restricted scenario. Versatile mounting options deliver a modern attractive environment for any restaurant.

Available I/O
Multiple I/O configurations available (PE24, PE26, PE17, PE22) with detailed I/O drawings.

Specifications (PE24 / PE26)
Main Board: PE24 / PE26
Processor: Intel® Celeron (PE24), Core i5/Core i3 (PE26)
System Memory: 1 x SO-DIMM DDR4 slot, 8GB RAM as standard. Max. memory support up to 16GB (PE24); 1 x 8GB DDR5 SO-DIMM memory, Max. support up to 32GB (PE26)
TPM: Intel F/W
Display & Touch: 21.5″ Full HD 1920 x 1080 16:9, 250cd/m² brightness, Projected Capacitive Technology, 10 point Multi-touch
Storage & Expansion: 1 x M.2 M Key, 1 x M.2 A,E Key (for WiFi/BT project based)
Panel I/O: 1 x Gigabit Ethernet by RJ-45, 3 x USB 3.1, 3 x USB 2.0, 2 x RJ-48 COM (Support DC+0/5/12V by BIOS default is 0V), 1 x RJ11 Cash Drawer (Support DC+12V or 24V(default), support 2 cash drawers), 1 x Type C, 1 x power on/off button, 1 x MiniDin 4P (DC +19v only)
OS Support: Win 10, Linux
Power Adapter: Input:100 ~ 240Vac/ 50 ~ 60Hz Output: 65W Adapter (19V Adapter) AC-DC Adapter (PE24); Output: 90W Adapter (19V Adapter) AC-DC Adapter (PE26)
Compliance: CE / FCC Class B
Protection: Front IP65
Mounting: Desktop Stand, Wall, Pole (VESA 100 x 100)
Environmental Condition: Operating 0°C ~ 40°C (32°F ~ 104°F), Storage -10°C ~ 60°C (14°F ~ 140°F), Operating Humidity 0% ~ 90% Relative Humidity, Non-condensing
Weight: 5.8 Kgs
Dimensions: 509 x 305 x 48mm

Specifications (PE17 / PE22)
Main Board: PE17 / PE22
Processor: Intel® Kaby Lake i5, Intel® Sky Lake i3, Intel® Sky Lake Celeron® (PE17); Intel® Core™ i5 Processor, Intel® Core™ i3 Processor, Intel® Celeron® Processor (PE22)
System Memory: 1 x SO-DIMM DDR4 slot, 8GB RAM as standard. Max. support up to 16GB
TPM: Intel F/W
Display & Touch: 21.5″ Full HD 1920 x 1080 16:9, 250cd/m² brightness, Projected Capacitive Technology, 10 point Multi-touch
Storage & Expansion: 1 x SATA III (2.5″), mini-pcie (PE17); 1 x M.2 M Key, 1 x M.2 A,E Key (for WiFi/BT project based) (PE22)
Panel I/O: 1 x Gigabit Ethernet by RJ-45, 2 x USB 3.0 (PE17), 4 x USB 3.1, 2 x USB 2.0 (PE22), 2 x COM (PE22), 1 x Cash Drawer (PE22), 1 x Type C (PE22), 1 x power on/off button, 1 x MiniDin 4P (DC +19v only)
OS Support: Win 10, Linux
Power Adapter: Input:100 ~ 240Vac/ 50 ~ 60Hz Output: 90W Adapter (19V Adapter) AC-DC Adapter
Compliance: CE / FCC / LVD
Protection: Front IP65
Mounting: Desktop Stand, Wall, Pole (VESA 100 x 100)
Environmental Condition: Operating 0°C ~ 40°C (32°F ~ 104°F), Storage -10°C ~ 60°C (14°F ~ 140°F), Operating Humidity 0% ~ 90% Relative Humidity, Non-condensing
Weight: 5.8 Kgs
Dimensions: 509 x 305 x 48mm

Technical Characteristics / Specifications

• 21.5″ Full HD 1920 x 1080 16:9 display
• 10-point Projected Capacitive Multi-touch
• 12th Gen Intel® Core™ Processor options (Celeron, i3, i5)
• DDR4/DDR5 SO-DIMM memory up to 32GB
• Multiple I/O: USB 3.1, USB 2.0, COM, LAN, DP (USB-C), RJ11 Cash Drawer
• Front IP65 protection
• Fanless system
• VESA 100 x 100 mounting
• OS Support: Windows 10, Linux
• Power Adapter: 65W/90W, 19V
• Weight: 5.8 kg
• Dimensions: 509 x 305 x 48mm
• Certifications: CE / FCC / LVD
