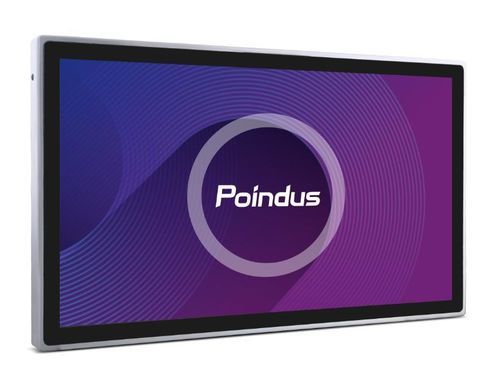

LED backlight panel PC SPPC-320

multitouch screenPCAP touchscreen32"

Overview
The SPPC-320 is a 32" Full HD industrial panel PC in a SUS 304 stainless steel enclosure with full-system IP65 ingress protection. Designed for continuous operation in industrial and demanding commercial environments, it offers a 10-point PCAP multi-touch display, fanless operation, scalable Intel processor options, and flexible mounting (Wall / Pole / VESA).

Key Features

• SUS 304 stainless steel enclosure for corrosion resistance
• Full system IP65 ingress protection for dust and water resistance
• 32" Full HD (1920 x 1080) multi-touch display (10-point PCAP)
• Fanless design for silent, low-maintenance operation
• Scalable Intel processor options from Elkhart Lake to Raptor Lake-P (i3 / i5 / i7)
• Supports Windows and Linux (Ubuntu) for integration flexibility
• Rich I/O with ingress-protected cable management and optional digital I/O
• External antennas and M.2 A/E key for project-based WiFi/BT modules

Product Highlights

• Performance options up to Intel® Core i7 on Raptor Lake-P U-platform
• Stainless steel chassis with VESA-compliant mounting for varied installations
• IP65-protected I/O interfaces with smart cable management
• Advanced heatsink design to sustain performance during continuous operation
• Display flexibility: standard sizes include 15" (4:3), 21.5" (16:9) and 32" (16:9); custom sizes available on request

Application Scenarios
The SPPC-320 is suitable for industrial HMI, process monitoring, machine control, KDS (Kitchen Display Systems) and mission-critical workflows where hygiene and continuous uptime are required. Typical environments include production lines, cleanrooms, food processing, pharmaceuticals and challenging commercial settings.

Multimedia & Connectivity

• Responsive multi-touch interface for operator interaction and data-driven workflows
• Wireless options: external antennas and M.2 A/E Key expansion for project-specific WiFi/Bluetooth modules
• Comprehensive wired connectivity and peripheral support for industrial integration

Product Video
Includes a product/series video demonstrating continuous-operation design and industrial use cases.

Specifications

• Model: SPPC-320
• System Information: PE24: Intel® Elkhart Lake Celeron; PE26: Intel® Raptor Lake-P U-Platform (options include i3 / i5 / i7)
• System Memory: PE24: 1 x SO-DIMM DDR4 slot, 8GB standard, up to 16GB; PE26: 1 x SO-DIMM DDR5 slot, 16GB standard, up to 32GB
• Intel® AMT: Available with i5 / i7 CPUs
• TPM: Intel® F/W TPM 2.0
• Display & Touch: 32" Full HD (1920 x 1080), 300 cd/m² LED backlight, 10-point PCAP multi-touch
• Storage: PE24: 1 x M.2 PCIe SSD; PE26: 1 x M.2 PCIe SSD or 2 x 2.5" SSD for RAID 0/1 (project-based)
• Expansion: 1 x M.2 A,E Key (for WiFi/BT project-based)
• Connectivity: 3 x USB 2.0, 3 x USB 3.1; 2 x RJ-48 COM (DC+0/5/12V configurable by BIOS, default 0V); 1 x Type-C (DP + PD); 1 x RJ45 Gigabit Ethernet (10/100/1000M) with WOL, PXE; 1 x RJ11 supporting DC+12V or 24V (default) for 2 cash drawers; 1 x 4-pin DIN lockable DC-IN
• Audio: 2 x 2W speakers
• Power Requirement: Input 100~240Vac / 50~60Hz; Output DC +19V via 90W AC-to-DC adapter
• Mechanical & Construction: Full system IP65; fanless operation; Net/Gross Weight: 23 kg / 25 kg; Dimensions (W x H x D): 765.6 x 460.6 x 62.3 mm; Mounting: Wall / Pole / VESA 400 x 200 & 200 x 150; Construction: Stainless Steel (SUS 304)
• Environmental: Operating temperature 0°C~40°C, 10%~90% RH non-condensing; Storage temperature -20°C~60°C, 10%~90% RH non-condensing
• Certification: CE / FCC / LVD
• OS Support: Windows 10 / 11 (64-bit), Linux (Ubuntu 22.04)
