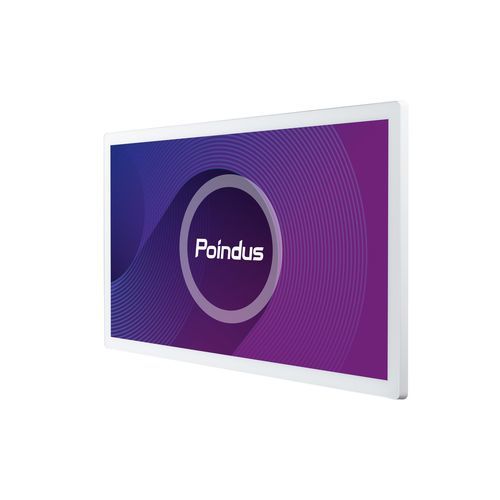

Panel PC with touch screen PPC-215

LCDmultitouch screenPCAP capacitive touch screen

Healthcare Solutions
Delivering Maximum Value to Healthcare

Product Overview
Our Health information technology (HIT) hardware solutions deliver simple integration to any healthcare infrastructure. The PPC-215 Medical brings the power, performance and reliability for accurate input, transmission, extraction, and analysis of information for the healthcare sector. Our technology solutions help deliver realtime information to physicians and other front-line healthcare users and overall improve quality of care and patient safety.

• Improve quality of care and patient safety with Technology

Health Information Systems (HIS) 21.5″ 16:9 Panel PC Solution

• 12th Gen Intel® Core™ Processor: Intel® Alder Lake i3, Intel® Alder Lake i5
• 10 points PCAP multi-touch support
• 3 x USB3.1, 3 x USB 2.0, 2 x COM, 1 x DP (by USB-C), 1 x LAN, 1 x CD
• Intel F/W TPM
• Front IP65, Fanless System & VESA Compliance
• WIFI / BT module / Peripherals (Project based)

Streamline Healthcare
Enhance Patient Care with Technology
The primary challenge for the full adoption of HIT is implementation cost. Our PPC-215 Medical is an affordable technology investment that offers a great return on investment. Our solutions are designed to deliver maximum value to meet healthcare project demands, with Poindus build quality and reliability.

• Maximize the return for your technology investment

Deliver the Power to Perform

• Intel® Core™ Processing: 12th Gen Intel CPU
• Fan-less Architecture: Silent running & prolonged lifespan
• IP65 Front: Protection against condensation and water spray
• Multiple Mount Options: Wall, Pole & Stand Mount Configurations

Versatile Mounting Solutions
Minimize your technology footprint and maximize your work area in the constraints of any space restricted scenario. Our versatile mounting options deliver a modern efficient environment for any healthcare scenario.

Available I/O
PE26

Specification
PPC-215 Medical | PE26

Main Board
PE26

Processor
Intel Alder LakeP Platform
Core i5
Core i3

System Memory
1 x SO-DIMM DDR5 slot, 8GB RAM as standard. Max. memory support up to 32GB.

Intel AMT
i5 CPU Only

TPM
Intel F/W TPM 2.0

Display & Touch
LCD Size: 21.5″
Display Type: Full HD
Resolution: 1920 x 1080
Luminance: 250cd/m²
Backlight: LED
Touch Type: True-Flat PCAP multi-touch screen

Graphics
Graphics Chipset: Intel® Iris® Xe Graphics eligible

Storage & Expansion
Storage: 1 x M.2 SSD or 2 x 2.5″ SSD for RAID 0/1 (Alder Lake-P Platform only, project based)
Expansion: 1 x M.2 A,E Key (for WiFi/BT project based)

Panel I/O
USB Port: 3 x USB 2.0, 3 x USB 3.1
Com Port: 2 x RJ-48 (Support DC+0/5/12V by BIOS default is 0V)
DP: 1 x Type C (DP+PD)
Cash Drawer: 1 x RJ11 (Support DC+12V or 24V(default)port, support 2 cash drawers)

Audio
Speaker Output: 2 x 2W

Ethernet
LAN Chipset: Gigabit-LAN: support WOL, PXE
Ethernet Interface: 10/100/1000 Base-Tx GbE compatible
LAN Port: 1 x RJ-45

OS Support
Windows 10/11 (64 bit), Linux (Ubuntu 22.04)

Power Adapter
DC Input Connector: 4 pin DIN
Adapter: Input:100 ~ 240Vac/ 50 ~ 60Hz, Output: 90W Adapter (19V Adapter) AC-DC Adapter

Compliance
Certifications: CE / FCC / LVD / EN 60601-1 / EN60601-1-2
Protection: Front IP65

Mounting
Options: Wall / Stand / VESA 75mm x 75mm

Environmental Condition
Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature: -10°C ~ 60°C (14°F ~ 140°F)
Operating Humidity: 0% ~ 90% Relative Humidity, Non-condensing
Weight: 5.8 Kgs
IP Rating: Front IP65
System Fan: Fanless
Construction – Front: Metal – White
Construction – Rear: Metal – White
Dimensions: 509 x 305 x 48mm

Characteristics / Technical Specifications

• 12th Gen Intel® Core™ Processor (Alder Lake i3/i5)
• 21.5″ Full HD (1920 x 1080) True-Flat PCAP multi-touch screen
• 1 x SO-DIMM DDR5 slot, 8GB RAM standard, up to 32GB
• 1 x M.2 SSD or 2 x 2.5″ SSD for RAID 0/1 (project based)
• 3 x USB 2.0, 3 x USB 3.1, 2 x COM, 1 x DP (USB-C), 1 x LAN, 1 x CD
• Intel F/W TPM 2.0
• Front IP65, Fanless System
• VESA 75mm x 75mm, Wall, Stand Mounting Options
• OS Support: Windows 10/11 (64 bit), Linux (Ubuntu 22.04)
• Certifications: CE / FCC / LVD / EN 60601-1 / EN60601-1-2
• Weight: 5.8 Kgs
• Dimensions: 509 x 305 x 48mm
