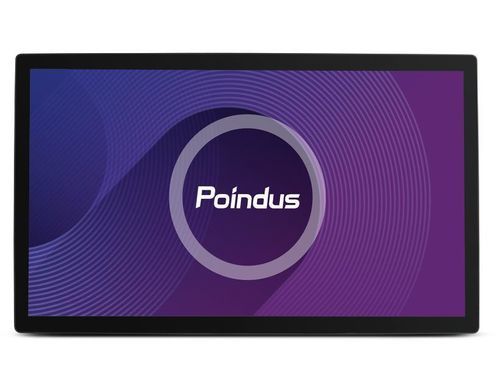

LED backlight panel PC PPC-320

PCAP touchscreenmultitouch screen32"

Overview
The PPC-320 is a 32" 16:9 panel PC designed for retail and hospitality installations where reliable touch interaction, compact mounting and silent operation are required.

Key Features

• Onboard Intel® Elkhart Lake Celeron; optional Intel® Alder Lake-P / U platforms supporting Core i3, i5 and project-based i7 CPUs.
• 32.0" Full HD display (1920 x 1080), 300 cd/m², LED backlight.
• 10-point PCAP multi-touch for precise and responsive touch input.
• Front panel IP65 ingress protection for splash and dust resistance.
• Intel F/W TPM 2.0 for platform security.
• Fanless design with advanced heatsink for silent, continuous operation.
• VESA-compliant mounting (VESA 100x100 & 200x100) for wall, pole or desk installation.
• WiFi/BT support via M.2 A/E Key slot (project-based) with external antenna options.
• Extension module design for project-based custom expansion.

Product Highlights

• Large modern Full HD display housed in an aluminum frame for professional installations.
• Multiple CPU options for scalable performance: Celeron (PE24) or Alder Lake-P / U-series i3, i5 (PE26) and project-based i7.
• Reliable fanless operation with enhanced heatsink for extended commercial use.

Display Flexibility & Application
The PPC series offers standard sizes (21.5", 23.8" and 32" 16:9) and custom sizes on demand. Typical applications include POS terminals, kiosks, kitchen display systems and interactive displays in retail and hospitality environments.

Software & Integration

• Supports Windows 10 (64-bit), Windows 11 (64-bit) and Linux distributions such as Ubuntu 22.04.
• Multiple peripheral and connectivity options simplify integration into POS and kiosk systems.

Photo & Mounting Options
Available product images show wall, pole and VESA mounting configurations and example user-interface layouts for retail and hospitality setups.

Technical specifications

• System Information: PE24: Intel® Elkhart Lake Celeron. PE26: Intel® Alder Lake-P / U-platform (Core i3 up to 4.4 GHz, Core i5 up to 4.4 GHz, Core i7 up to 4.7 GHz - i7 project based).
• System Memory: PE24: 1 x SO-DIMM DDR4 slot, 8GB standard, up to 16GB. PE26: 1 x SO-DIMM DDR5 slot, 8GB standard, up to 32GB.
• Intel® AMT: supported with i5 / i7 CPU (platform dependent).
• TPM: Intel® F/W TPM 2.0.
• Display & Touch: 32" Full HD (1920 x 1080), 300 cd/m², LED backlight, 10-point PCAP multi-touch.
• Storage: PE24: 1 x M.2 PCIe SSD. PE26: 1 x M.2 PCIe SSD or 2 x 2.5" SSD for RAID 0/1 (project based).
• Expansion: 1 x M.2 E Key (for WiFi/BT, project based).
• Connectivity: 3 x USB 2.0, 3 x USB 3.1; 2 x RJ-48 COM ports (support DC+0/5/12V selectable in BIOS; default 0V); 1 x USB Type-C (DP + PD); 1 x RJ45 Gigabit Ethernet (10/100/1000M, WOL, PXE); 1 x RJ11 supporting DC+12V or 24V (default) for up to 2 cash drawers; 1 x 4-pin DIN with lock for DC-IN.
• Audio: 2 x 2W speakers.
• Power Requirement: Input 100–240Vac / 50–60Hz. Output DC +19V via 90W AC-to-DC adapter.
• Mechanical & Construction: Front panel IP65; fanless operation; weight NW/GW: 8.2 kg / 10 kg; dimensions (W x H x D): 749.5 x 451.9 x 64.56 mm; mounting: Wall / Pole / VESA 100x100 & 200x100; construction: aluminum frame with sheet metal chassis.
• Environmental: Operating temp 0°C ~ 40°C, 10% ~ 90% RH non-condensing. Storage temp -20°C ~ 60°C, 10% ~ 90% RH non-condensing.
• Certification: CE / FCC / LVD.
• OS Support: Windows 10 / 11 (64 bit), Linux (e.g. Ubuntu 22.04).
