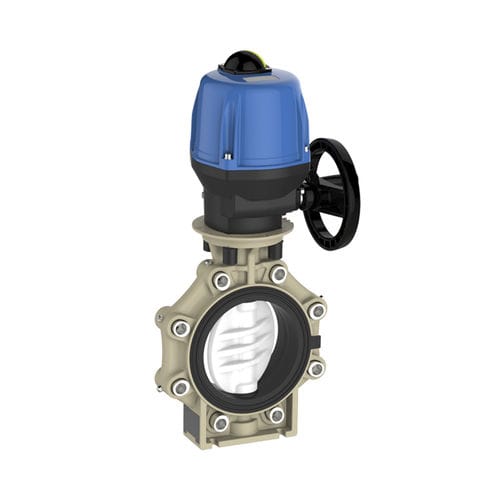

Butterfly valve K4 electrically-operatedPVDFflange
Add to favorites
Compare this product
Characteristics
- Type
- butterfly
- Operation
- electrically-operated
- Body
- flange, lug type, PVDF, IP65, IP67
- Applications
- hygienic
- Other characteristics
- ANSI, DIN
- DN
Max.: 200 mm
(7.874 in)Min.: 65 mm
(2.559 in)- Pressure
10 bar
(145 psi)- Temperature
Max.: 70 °C
(158 °F)Min.: -20 °C
(-4 °F)- Flow rate
Max.: 38,000 l/min
(10,038.54 us gal/min)Min.: 73 l/min
(19.28 us gal/min)
Description
Lug Type Version in DIN and ANSI – the inserts allow the installation as intermediate flange or as final installation valve or individual one-sided removal of the piping system!
Installation without additional adaptor or screws
Manual override
Position indication
Torque and force limiters
Travel time 6–50 sec
Accessories: Fail-safe, Multivoltage, 4–20 mA Positioner
Also available with Bernard actuator.
Approvals - EURASEC Hygienic Certificate, GOST Certificate, Rostehnadzor Permission
Catalogs
Butterfly Valve K4
7 Pages
Wafer check valve K4
6 Pages
