Butterfly valve K4
pneumaticelectricflange

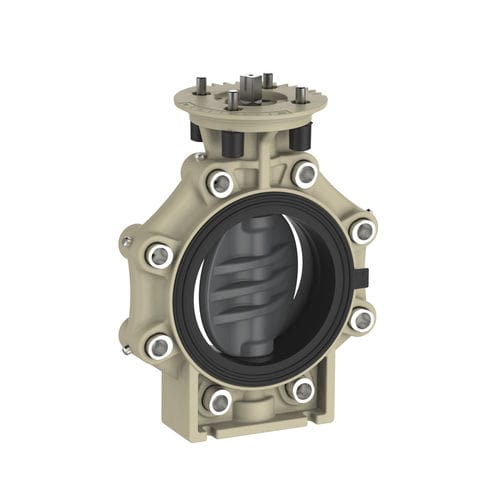

Butterfly valve - K4 - Praher Plastics Austria GmbH - pneumatic / electric / flange
Butterfly valve - K4 - Praher Plastics Austria GmbH - pneumatic / electric / flange
Butterfly valve - K4 - Praher Plastics Austria GmbH - pneumatic / electric / flange - image - 2
Add to favorites
Compare this product

Characteristics

Type
butterfly
Operation
pneumatic, electric
Body
flange, lug type
Applications
hygienic
Material
PVC-U
Other characteristics
ISO, DIN, ANSI
DN

Min.: 65 mm
(2.559 in)

Max.: 250 mm
(9.843 in)

Pressure

10 bar
(145 psi)

Temperature

Min.: -20 °C
(-4 °F)

Max.: 120 °C
(248 °F)

Flow rate

Min.: 73 l/min
(19.28 us gal/min)

Max.: 38,000 l/min
(10,038.54 us gal/min)

Description

Lug Type Version in DIN and ANSI – the inserts allow the installation as intermediate flange or as final installation valve or individual one-sided removal of the piping system! Double sealed shaft Encapsulated wetted parts Integrated brackets for fix point mounting Mounting between DIN, ANSI, JIS flanges ISO 5211 flange type (F07, F10) Simple installation of pneumatic or electric actuator Approvals - EURASEC Hygienic Certificate, GOST Certificate, Rostehnadzor Permission

Catalogs

Other Praher Plastics Austria GmbH products

Butterfly valves lug type
