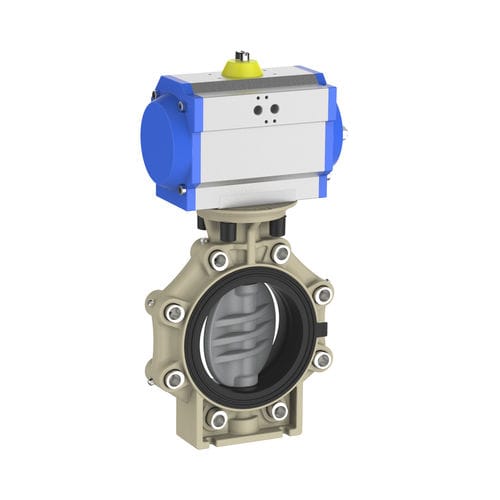

Butterfly valve K4 pneumaticflangelug type
Add to favorites
Compare this product
Characteristics
- Type
- butterfly
- Operation
- pneumatic
- Body
- flange, lug type, EPDM, PVC-U, anodized aluminum
- Other characteristics
- ANSI, DIN
- DN
Max.: 100 mm
(3.937 in)Min.: 65 mm
(2.559 in)- Pressure
10 bar
(145 psi)- Temperature
Max.: 80 °C
(176 °F)Min.: -20 °C
(-4 °F)- Flow rate
Max.: 8,200 l/min
(2,166.21 us gal/min)Min.: 73 l/min
(19.28 us gal/min)
Description
Lug Type Version in DIN and ANSI – the inserts allow the installation as intermediate flange or as final installation valve or individual one-sided removal of the piping system!
Aluminium epoxy powder coated end caps
Any installation position
Rotation angle 90°, +/- 10°
Integrated optical position indication
Accessories:
Limit switch box
Solenoid valve
Seal materials - EPDM, FPM
Catalogs
Butterfly Valve K4
7 Pages
Wafer check valve K4
6 Pages
