Butterfly valve K4
pneumatically-operatedelectrically-operatedflange

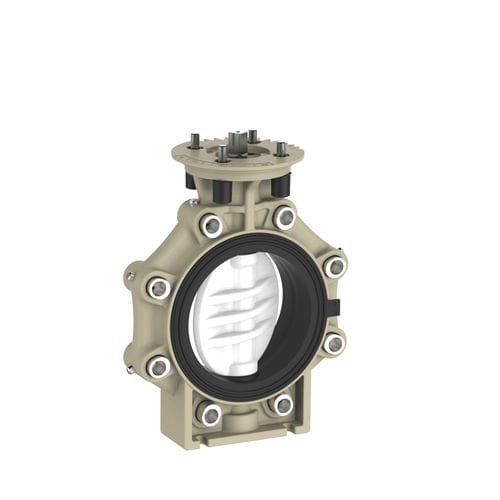

Butterfly valve - K4 - Praher Plastics Austria GmbH - pneumatically-operated / electrically-operated / flange
Butterfly valve - K4 - Praher Plastics Austria GmbH - pneumatically-operated / electrically-operated / flange
Butterfly valve - K4 - Praher Plastics Austria GmbH - pneumatically-operated / electrically-operated / flange - image - 2
Add to favorites
Compare this product

Characteristics

Type
butterfly
Operation
pneumatically-operated, electrically-operated
Body
flange, lug type
Material
PVDF
Other characteristics
ISO, ANSI, DIN
DN

Min.: 65 mm
(2.559 in)

Max.: 200 mm
(7.874 in)

Pressure

10 bar
(145 psi)

Temperature

Min.: -20 °C
(-4 °F)

Max.: 120 °C
(248 °F)

Flow rate

Min.: 73 l/min
(19.28 us gal/min)

Max.: 38,000 l/min
(10,038.54 us gal/min)

Description

Lug Type Version in DIN and ANSI – the inserts allow the installation as intermediate flange or as final installation valve or individual one-sided removal of the piping system! Double sealed shaft Encapsulated wetted parts Integrated brackets for fix point mounting Mounting between DIN, ANSI, JIS flanges ISO 5211 flange type (F07, F10) Approvals - EURASEC Hygienic Certificate, GOST Certificate, Rostehnadzor Permission
