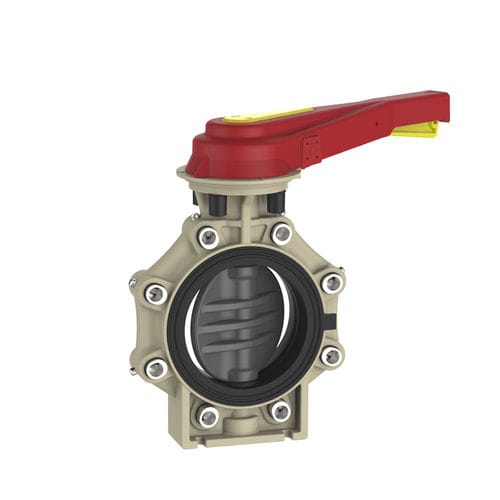

Butterfly valve K4 leverflangelug type
Add to favorites
Compare this product
Characteristics
- Type
- butterfly
- Operation
- lever
- Body
- flange, lug type
- Material
- PVC-U
- Other characteristics
- DIN, ANSI, locking
- DN
Max.: 200 mm
(7.874 in)Min.: 65 mm
(2.559 in)- Pressure
10 bar
(145 psi)- Temperature
Max.: 120 °C
(248 °F)Min.: -20 °C
(-4 °F)- Flow rate
Max.: 38,000 l/min
(10,038.54 us gal/min)Min.: 73 l/min
(19.28 us gal/min)
Description
Lug Type Version in DIN and ANSI – the inserts allow the installation as intermediate flange or as final installation valve or individual one-sided removal of the piping system!
Only sleeve gasket and flap in touch with medium
Double sealed shaft
Integrated brackets for fix point mounting
Simple and quick assembling of the actuator without any extra parts
10 different disc locking positions
Reliable “Locking-handle-systems”
Hand Lever with marking plate (different colours available)
Metal adapter between handle and shaft avoids abrasion of the handle
