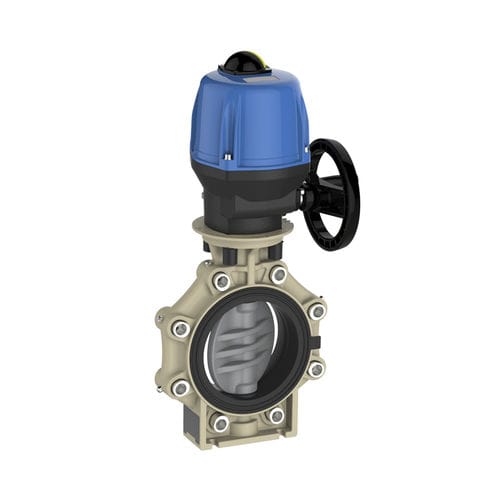

Butterfly valve K4 electrically-actuatedflangelug type
Add to favorites
Compare this product
Characteristics
- Type
- butterfly
- Operation
- electrically-actuated
- Body
- flange, lug type, EPDM, PVC, IP65, IP67
- Other characteristics
- ANSI, DIN, with positioner
- DN
Min.: 65 mm
(2.559 in)Max.: 100 mm
(3.937 in)- Pressure
10 bar
(145 psi)- Temperature
Min.: 0 °C
(32 °F)Max.: 80 °C
(176 °F)- Flow rate
Min.: 73 l/min
(19.28 us gal/min)Max.: 8,200 l/min
(2,166.21 us gal/min)
Description
Lug Type Version in DIN and ANSI – the inserts allow the installation as intermediate flange or as final installation valve or individual one-sided removal of the piping system!
Installation without additional adaptor or screws
Manual override
Position indication
Torque and force limiters
Travel time 6–50 sec
Accessories: Fail-safe, Multivoltage, 4–20 mA Positioner
Seal materials - EPDM, FPM
Catalogs
Butterfly Valve K4
7 Pages
Wafer check valve K4
6 Pages
