- Praher Plastics Austria GmbH

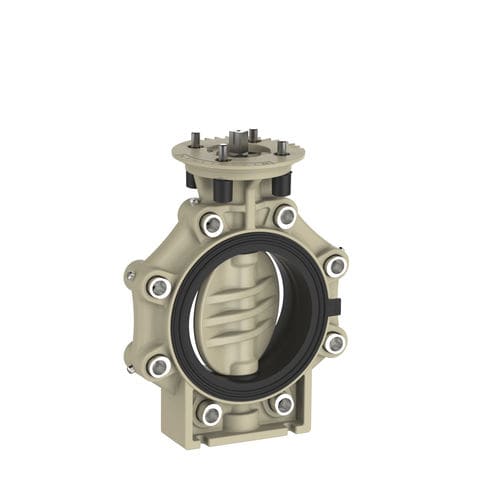

Butterfly valve K4 pneumaticelectricflange
Add to favorites
Compare this product
Characteristics
- Type
- butterfly
- Operation
- pneumatic, electric
- Body
- flange, lug type, EPDM, PP
- Applications
- hygienic
- Other characteristics
- ISO, ANSI, DIN
- DN
Max.: 200 mm
(7.874 in)Min.: 65 mm
(2.559 in)- Pressure
10 bar
(145 psi)- Temperature
Max.: 120 °C
(248 °F)Min.: -20 °C
(-4 °F)- Flow rate
Max.: 38,000 l/min
(10,038.54 us gal/min)Min.: 73 l/min
(19.28 us gal/min)
Description
Lug Type Version in DIN and ANSI – the inserts allow the installation as intermediate flange or as final installation valve or individual one-sided removal of the piping system!
Double sealed shaft
Encapsulated wetted parts
Integrated brackets for fix point mounting
Mounting between DIN, ANSI, JIS flanges
ISO 5211 flange type (F07, F10)
Simple installation of pneumatic or electric actuator
Seal materials - EPDM, FPM
Connections - flange
Approvals - EURASEC Hygienic Certificate, GOST Certificate, Rostehnadzor Permission
