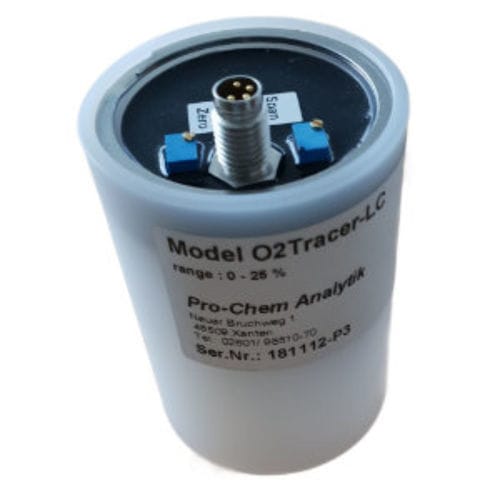

Oxygen gas transmitter O2Tracer LC-OEM

electrochemical2-wirefuel cell

Product overview
The O2Tracer LC-OEM is an OEM trace oxygen analyzer designed to measure oxygen concentration at percent levels for industrial gas applications and system integration.

Measuring range
The instrument is configurable for user-specific ranges between 0 – 100 % oxygen; a common special range is 0 – 25 %.

Sensor
The O2Tracer LC-OEM uses an electrochemical fuel cell sensor to determine oxygen concentration. The sensor provides industrial-grade sensitivity, accuracy and a long operating life suitable for continuous use.

Calibration
Calibration for trace oxygen measurements can be performed using ambient air or a calibration gas as required by the application.

Features

• compact design
• economical operation
• sensor with long operating life
• IP65 enclosure
• reverse voltage protection and temperature compensation

Flow
Sample flow is routed through a small included sample chamber; typical flow rate approx. 1 l/min.

Application areas

• Air, oxygen and nitrogen generators

Technical specifications

• Parameters: Oxygen %
• Method: electrochemical
• Range: 0 – 25 % (special range); different measuring ranges available (up to 0 – 100 %)
• Accuracy: +/- 2 % FSD
• Resolution: 0.1 % / 0.01 %
• Response time T90: 0 – 1 % = 20 s
• Flow rate: approx. 1 l/min
• Pressure: 0.1 – 1 bar
• Calibration: Air / Calibration Gas (can be calibrated with ambient air)
• Gas temperature: 0 – 50 °C
• Output: 4 – 20 mA (2-Wire)
• Supply Voltage: 10 – 35 V
• Display: no display
• Protection Class: IP65
• Connection: 6 mm
• Dimensions: 60 x 90 (mm)
• Weight: 1 Kg
• ATEX: No
• SIL: No
