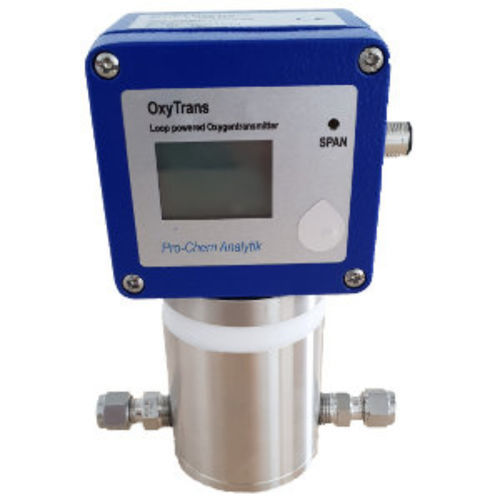

Oxygen analyzer OxyTrans I

gasmonitoringfor ambient air

Overview
The OxyTrans I is a loop-powered two-wire oxygen transmitter for trace and percent level measurements. It uses a fuel-cell sensor to provide accurate, long-life monitoring with a simple display and one-point calibration. Optional ATEX approval (1/2 G Ex ia IIC T4) and SIL capability meet industrial deployment requirements.

Description
One user-selectable measuring range: available ranges from 0–10 ppm up to 0–100% O2. The fuel-cell sensor is designed for sensitivity and extended service life. For trace oxygen measurements calibrate with a calibration gas (concentration selectable within the measuring range); in the percent range calibrate with ambient air.

Features

• Loop-powered 2‑wire output (4–20 mA)
• Fuel-cell sensor with long operating life
• IP65 enclosure
• Reverse voltage protection
• Temperature compensation
• Compact and cost-efficient design

Flow-through measuring cell
The modular stainless steel measuring cell is serviceable: a defective part can be replaced without changing the complete unit, reducing maintenance time and cost.

Table (product overview)
Parameters: Oxygen % / Oxygen ppm
Method: electrochemical
ATEX: Optional 1/2 G Ex ia IIC T4
SIL: Yes
Range: 0–100 %; 0–10 000 ppm; 0–10 ppm; special ranges available
Accuracy: ±2 % FSD
Response time T90: 0–10 ppm = 45 s; 0–100 ppm = 20 s
Output: 4–20 mA (2‑wire)
Supply Voltage: 10–35 V

Standard Features

• Different sensors available
• Five measuring ranges
• 316 SS stainless steel cell block
• Optional sensor housing with KF40 tri‑clamp

Application Areas

• Semiconductor industry
• Gas manufacturers
• Metallurgical industry
• Chemical industry
• Heat treating and bright annealing processes
