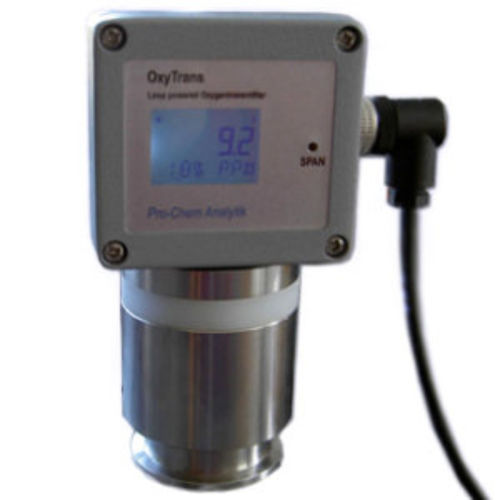

Oxygen gas transmitter OxyTrans I KF

electrochemical2-wirefuel cell

Overview
The OxyTrans I KF is an electrochemical oxygen analyzer for trace and percent measurements (ppm and %), designed for flow-through applications with a KF40 connection. It features an easy-to-read LCD, one-point calibration and an industrial-grade sensor suited to continuous monitoring.

Applications

• Process gas monitoring
• Inert gas control
• Vacuum systems and leak testing
• Semiconductor, laboratory and industrial installations

Measuring ranges
Selectable ranges from 0–10 ppm up to 0–100% O2; custom ranges available on request.

Sensor
The unit uses a fuel-cell (electrochemical) sensor that provides high sensitivity, linear response and long operating life for both trace and percent measurements.

Calibration
Trace-range calibration should be performed with an appropriate calibration gas at a chosen concentration within the measuring range. Percent-range calibration can be performed with ambient air.

Features

• Compact flow-through design
• Cost-effective for continuous monitoring
• Long-life electrochemical sensor
• IP65 enclosure for industrial environments
• Reverse-voltage protection and temperature compensation

Flow-through measuring cell in Stainless Steel

• Modular stainless-steel measuring cell
• Replaceable components allow repair of the cell without replacing the complete unit

Product overview
Parameters: Oxygen % / Oxygen ppm
Method: electrochemical
Range: 0–100% / 0–10,000 ppm / 0–10 ppm / special ranges
ATEX: Yes
SIL: Yes
Accuracy: ±2 % FSD
Resolution: 0.1 ppm
Flow rate: approx. 1 l/min
Pressure: 0.1–1 bar
Calibration: Air / Calibration Gas
Response time T90: 0–10 ppm = 45 s / 0–100 ppm = 20 s
Output: 4–20 mA (2-Wire)
Supply Voltage: 10–35 V
Display: LCD 6 digits / Bargraph
Protection Class: IP65
Connection: KF40 flange
Dimensions: 120 x 160 x 65 mm
Weight: 2 kg

Technical specifications

• Parameters: Oxygen %; Oxygen ppm
• Method: electrochemical
• Range options: 0–100%; 0–10,000 ppm; 0–10 ppm; special ranges on request
• ATEX: Yes
• SIL: Yes
• Accuracy: ±2 % FSD
• Resolution: 0.1 ppm
• Flow rate: approx. 1 l/min
• Pressure range: 0.1–1 bar
• Calibration: Air (percent range) or Calibration Gas (trace measurements)
• Response time T90: 45 s (0–10 ppm); 20 s (0–100 ppm)
• Gas temperature: 0–50 °C
• Output: 4–20 mA (2-Wire)
• Supply Voltage: 10–35 V
• Display: LCD 6 digits; Bargraph
• Protection Class: IP65
• Connection: KF40 flange
• Dimensions (mm): 120 x 160 x 65
• Weight: 2 kg
