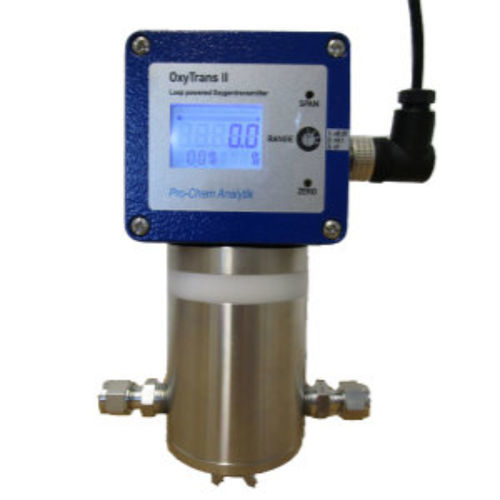

Oxygen analyzer OxyTrans II

monitoringfor ambient airprocess

Description
The OxyTrans II provides precise electrochemical measurement of oxygen at trace (ppm) and percent levels for industrial process control and gas monitoring. The instrument features a clear display and one-point calibration for quick commissioning. ATEX certification (1/2 G Ex ia IIC T4) is available as an option.

One user specific measuring range
The unit is supplied with a selected measuring range between 0–10 ppm and 0–100% O2. Switchable ppm ranges: 10,000 / 1,000 / 100 / 10 ppm. Switchable percent ranges: 25 / 2.5 / 0.25 % O2.

Sensor
The OxyTrans II uses an electrochemical fuel-cell sensor designed for industrial use, offering high sensitivity, stable accuracy and extended operating life.

Calibration
Trace oxygen calibration should be performed using a calibration gas with a chosen concentration within the measuring range. For percent-range calibration the unit can be calibrated with ambient air. A zero set point is also available for low-ppm measurements.

Features

• compact design for panel or bench mounting
• switchable measuring ranges from 10,000 ppm down to 10 ppm
• reduced inventory: one instrument covers multiple ranges
• sensor with long operating life
• IP65 enclosure for harsh environments
• reverse-voltage protection and temperature compensation
• no cross-sensitivity to H₂
• zero calibration available for low-ppm measurements

Flow-through measuring cell in Stainless Steel

• Modular measuring cell constructed in stainless steel
• Faulty components can be replaced individually without replacing the entire cell

Standard features

• multiple sensor options
• manual switching of measuring ranges
• 316 stainless steel cell block
• optional sensor housing with KF40 flange

Application areas

• Semiconductor industry
• Gas manufacturers
• Metallurgical industry
• Chemical industry
• Heat treatment and bright annealing

Technical specifications

• Parameters: Oxygen %; Oxygen ppm
• Method: Electrochemical (fuel cell)
• Range: 0–100 % (on request); 0–10 %; 0–1 %; 0–10,000 ppm; 0–1,000 ppm; 0–100 ppm; 0–10 ppm (switchable)
• ATEX: optional (1/2 G Ex ia IIC T4)
• SIL: Yes
• Accuracy: ±2% FSD
• Resolution: 0.1 ppm; 0.01 ppm
• Flow rate: approx. 1 l/min
• Pressure: 0.1 – 1 bar
• Calibration: Air; Calibration gas
• Response time T90: 0–10 ppm = 45 s; 0–100 ppm = 20 s
• Gas temperature: 0 – 50 °C
• Output: 4 – 20 mA; 2-wire; HART protocol
• Supply voltage: 10 – 35 V
• Display: 6-digit LCD; bargraph
• Protection class: IP65
• Connection: 6 mm
• Dimensions: 120 x 160 x 65 mm
• Weight: 2 kg
