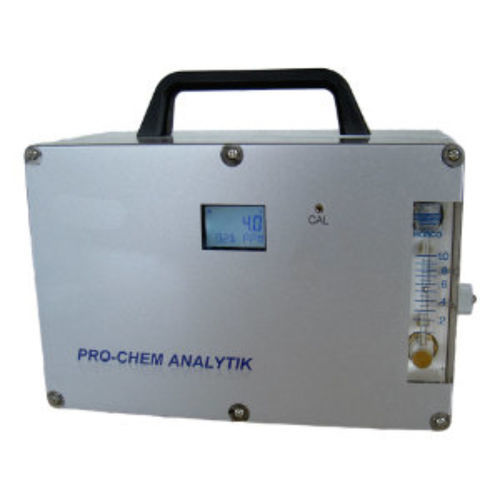

Oxygen analyzer OxyP %

industrialtracecompact

Product description
This model was made for fast, accurate and economic measurement of oxygen at trace or percent levels. A simple operating concept and a large LCD display allow easy and fast start-up of the instrument. The unit measures oxygen between 0–10,000 ppm or 0–25%.

Measuring ranges
0 – 100 %
0 – 25 %
0 – 5 %
Special ranges available
Trace range: 0 – 10,000 ppm

Data outputs
Standard 4–20 mA output for O2. Optional datalogger available.

Sensor with long operating life
The Oxymaster uses a special fuel cell to measure oxygen concentration. The sensor is designed to meet industrial requirements for accuracy, sensitivity, ease of use and long operating life.

Calibration
Calibration for trace oxygen measurements in gas should be done with a calibration gas. The calibration concentration can be chosen freely within the measuring range.

Benefits

• Compact, economic instrument
• Sensor with long operating life
• No range switching required
• Optional with gas sampling pump or flow meter
• Rechargeable battery

Flow-through measuring cell in stainless steel

• The measuring cell is modular and is made of stainless steel
• A defective measuring cell can be repaired by replacing the defective part only, rather than the complete unit

Technical specifications

• Parameters: Oxygen %
• Method: Electrochemical
• Range: 0 – 100 %; 0 – 25 %; 0 – 5 %; special ranges
• Trace range: 0 – 10,000 ppm
• ATEX: No
• SIL: No
• Accuracy: ±2 % FSD
• Resolution: 0.01 %
• Response time T90: 0–10 % in 30 s
• Flow rate: approx. 1 l/min
• Pressure: 0.1 – 1 bar
• Calibration: Air or calibration gas
• Gas temperature: 0 – 50 °C
• Output: 4–20 mA; datalogger optional
• Supply voltage: 85 – 230 V; battery (rechargeable)
• Display: LCD 6 digits; bargraph display
• Protection class: IP65
• Connection: 6 mm
• Dimensions: 240 x 160 x 130 mm
• Weight: 2 kg
