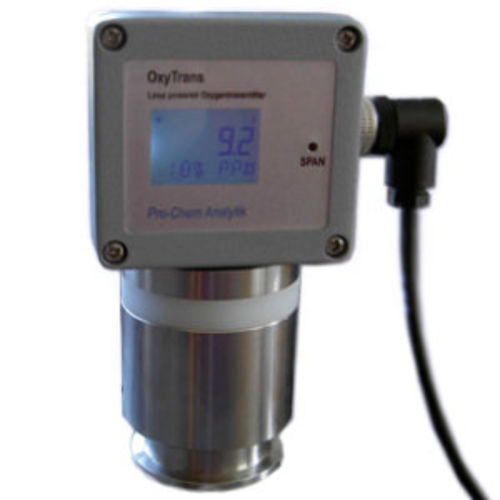

Oxygen gas transmitter OxyTrans II KF

electrochemical2-wirefuel cell

Overview
The OxyTrans II KF is a loop-powered 2-wire oxygen transmitter designed for trace and percent-level oxygen measurement. It features a simple display and one-point calibration for quick commissioning and continuous process monitoring.

Sensor
The OxyTrans II KF uses a fuel-cell (electrochemical) sensor to determine oxygen concentration. The sensor is designed for industrial use with high sensitivity, stable output and long operating life.

Calibration
For trace oxygen measurements use a calibration gas with a concentration selectable within the measuring range. For percent-range measurements calibration can be performed with ambient air.

Features

• compact design
• cost-effective solution
• sensor with long operating life
• IP65 enclosure
• reverse voltage protection
• temperature compensation

Flow-through measuring cell in Stainless Steel

• Modular measuring cell constructed from stainless steel
• Serviceable: replace only the defective part instead of the entire cell

Application Areas

• Semiconductor industry
• Gas manufacturers
• Metallurgical industries
• Chemical industry

Technical specifications

• Parameters: Oxygen %; Oxygen ppm
• Method: electrochemical (fuel cell)
• Ranges: 0–100 % (on request); 0–10 %; 0–1 %; 0–10,000 ppm; 0–1,000 ppm; 0–100 ppm; 0–10 ppm; switchable
• Accuracy: ±2 % FSD
• Resolution: 0.1 ppm
• Response time T90: 0–10 ppm = 45 s; 0–100 ppm = 20 s
• Flow rate: approx. 1 l/min
• Pressure: 0.1–1 bar
• Calibration: Air; Calibration Gas
• Gas temperature: 0–50 °C
• Output: 4–20 mA; 2-Wire
• Supply Voltage: 10–35 V
• Display: LCD 6 digits; Bargraph display
• Protection Class: IP65
• Connection: KF 40 flange
• Dimensions: 120 x 160 x 65 mm
• Weight: 2 Kg
