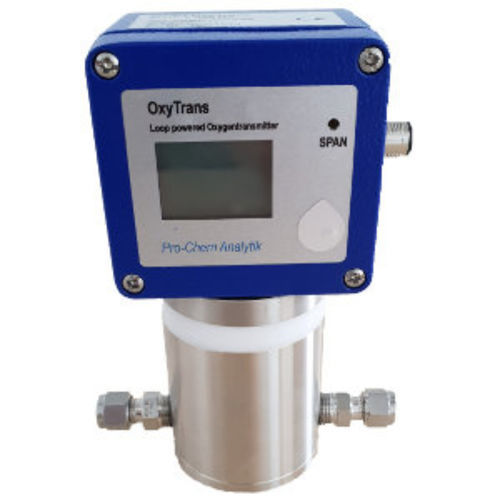

Oxygen analyzer OxyTrans 100

processindustrialsecurity

Short description The OxyTrans 100 is a compact industrial oxygen analyzer for trace and percent-level measurement (0-100% O2). It uses an electrochemical (fuel cell) sensor with simple display and one-point calibration for fast start-up. Designed for hydrogen-related processes and suitable for SIL applications; optional 1/2 G Ex ia IIC T4 (ATEX).

Applications

• Process monitoring in chemical and petrochemical plants
• Hydrogen production and handling
• Gas generation and purity control
• Safety and combustion control systems
• OEM integration and laboratory sampling

Key features

• Compact, panel- or wall-mountable enclosure
• Cost-effective solution for % and trace O2 measurement
• Electrochemical sensor with approx. 5 years life in ambient air
• IP65 protection for harsh environments
• Reverse voltage protection and temperature compensation
• Single-point zero calibration for quick commissioning
• LCD 6-digit display with bargraph
• Output: 4-20 mA (two-wire); supply 10-35 V
• 6 mm process connection

Flow-through measuring cell

• Modular measuring cell manufactured in stainless steel
• Defective parts can be replaced individually without discarding the complete cell

Specifications

• Parameter measured: Oxygen (%)
• Measuring method: Electrochemical sensor (fuel cell)
• Measuring range: 0 - 100 % O2
• Accuracy: ±2 %
• Resolution: 0.1 %
• Typical flow rate: approx. 1 L/min
• Operating pressure: 0.1 – 1 bar
• Response time T90: <45 s (0–100 %), <20 s (0–10 %)
• Gas temperature range: 0 – 50 °C
• Output signal: 4–20 mA (two-wire)
• Supply voltage: 10–35 V
• Display: LCD 6 digits with bargraph
• Protection class: IP65
• Connection: 6 mm
• Dimensions (mm): 120 x 160 x 65
• Weight: 2 kg
• Sensor life: approx. 5 years in ambient air
• Optional: 1/2 G Ex ia IIC T4 (ATEX)
• SIL: Suitable for SIL applications
