Analog output module RAG1515

2 analog outputsautomationfor control cabinets

Overview

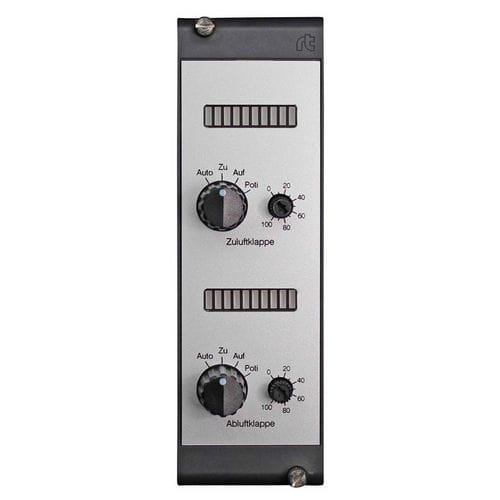

The RAG1515 is an analog module supplying two 0–10 V channels with integrated control switch, potentiometer and bar display. It is designed for 19-inch frame installation (width 8 TE) and converts DDC inputs to field-module outputs. Product number: 00001114

Technical data

• Power supply: 24 V AC/DC, ±10%
• Max consumption: 80 mA
• Inputs: 0–10 V (DDC)
• Input resistor: 100 kΩ
• Outputs: 0–10 V to field module; max. load 10 mA
• Output resistor: 100 Ω
• 1× fixed 10 V output, max. 10 mA
• Switching capacity: 20 VA / 20 W; max. switching voltage: 50 V AC/DC; switching current: 200 mA
• Quiescent current: max. 1 A
• Minimum switching cycles: 50,000
• Protection class: IP40 (IP54 with cover/window)
• Dimensions: width 8 TE (40.5 mm), height 3 HE (129 mm), installation depth < 80 mm
• Terminals: 2.5 mm² pluggable screw terminal
• Mounting: 19-inch frame
• Operating temperature: 0 ... 50 °C; storage/transport: -20 ... +70 °C
• Relative humidity: 5 ... 95%, non-condensing
• EMC / test standards: EN 61000-4-2, EN 61000-4-5, EN 61000-4-4 (details in technical data)
• Weight: 0.141 kg

Features

• Two independent analog channels 0–10 V
• Integrated control switch for local operation
• Front potentiometer for manual adjustment
• Front bar display for visual signal level
• Compact 8 TE width for 19-inch rack integration
• Pluggable 2.5 mm² screw terminals for easy wiring
• Multiple EMC/ESD surge and burst protections

Applications
Designed for building automation and industrial control panels where DDC signals must be converted and locally adjusted. Suitable for control cabinets and field-level signal interfacing. Product number: 00001114
