Output control module RAG1515-01

analog2-O

Product description

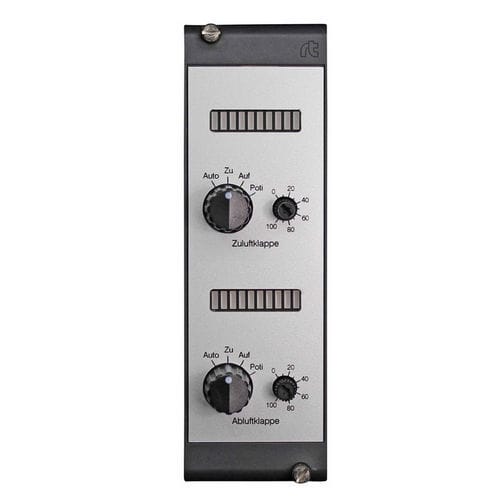

Analog manual control module for 1 or 2 actuators, with bar indicator. The module provides a local manual-control level with emergency function for 1–2 analog outputs of control units or DDC systems, enabling manual override. The rotary switch Auto‑Zu‑Auf‑Poti selects the output mode: in Auto the signal is taken from the control system; in Poti the built-in potentiometer allows continuous setting of the output from 0–10 V. The bar indicator is not coupled to the output voltage and can be driven externally. Terminal 43 supplies 10 V DC for frost protection or similar functions. Each output is loadable up to 10 mA. The automatic position of each switch is provided potential-free on a terminal. If local indication (Zu‑Auf‑Poti) is required, add type suffix -H0. RAG0015-01 = 1 analog output; RAG1515-01 = 2 analog outputs.

Technical specifications

• Model: RAG1515-01 (2 analog outputs). Variant RAG0015-01 = 1 analog output
• Function: local manual-control level with emergency function for analog outputs of control units / DDC systems
• Output signal: 0–10 V (continuously adjustable via built-in potentiometer in "Poti" mode)
• Mode switch: rotary switch Auto‑Zu‑Auf‑Poti (Auto: signal from control system; Poti: manual adjustment)
• Bar indicator: separate, not coupled to output voltage, externally controllable
• Auxiliary voltage: terminal 43 provides 10 V DC (e.g. for frost protection)
• Output load capacity: up to 10 mA per output
• Automatic position: potential-free on terminal
• Local indication (Zu‑Auf‑Poti): specify type suffix "-H0" if required
• Weight: 0.145 kg
• Product number / SKU: 00001115
• Available documents: Data Sheet (PDF), Connection Diagram (PDF), Technical Description (TXT)
