Analog control module RAG1515H0-01

2-O

Product overview

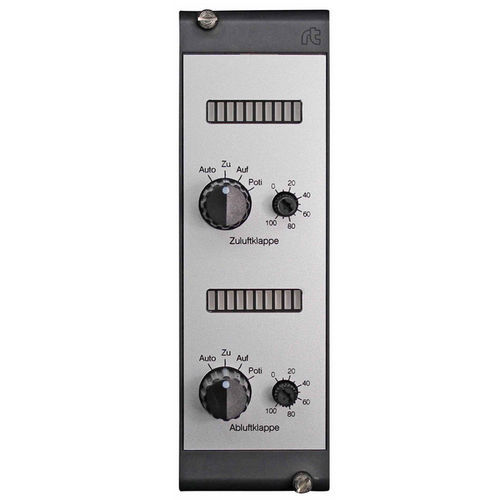

Analog output module providing manual override and emergency operation for 1 to 2 analog outputs (0–10 V). Each output can be switched between automatic (signal from control system) and manual mode using the built-in selector and potentiometer. The bar indicator is not voltage-coupled to the outputs and can be driven externally via a dedicated terminal. Terminal 43 provides 10 V DC for functions such as frost protection. Each output max. load: 10 mA. Local indication option available with type suffix -H0.

Variants

• RAG0015-01 - 1 analog output
• RAG1515-01 - 2 analog outputs

Technical specifications

• Model: RAG1515H0-01
• Function: 0–10 V analog output module for 1–2 actuators with manual override/emergency operation
• Mode selector: rotary switch "Auto - Zu - Auf - Poti" (Auto = signal from controller, Poti = manual 0–10 V)
• Potentiometer: built-in, continuous 0–10 V adjustment
• Bar indicator: separate input, not coupled to output voltage
• Terminal 43: 10 V DC supply (e.g., frost switching)
• Max load per output: up to 10 mA
• Automatic position: potential-free available on a terminal
• Type suffix: -H0 = local indication (Zu-Auf potentiometer)
• Weight: 0.145 kg
• Manufacturer: romutec Steuer- und Regelsysteme GmbH
• Product number / SKU: 00001993
• Release date: 2026-04-28

Typical applications

• Local manual override for DDC or control systems
• Manual control of actuators requiring 0–10 V input
• Integration with building automation for frost protection and commissioning
• Visual status indication via external bar indicator

Ordering information / notes

• Specify suffix -H0 for local position feedback (Zu‑Auf potentiometer)
• Bar indicator must be controlled externally; it is not directly coupled to the output voltage
• Each output limited to 10 mA load
