Analog output module RAG1010-01

2 analog outputs

Product overview

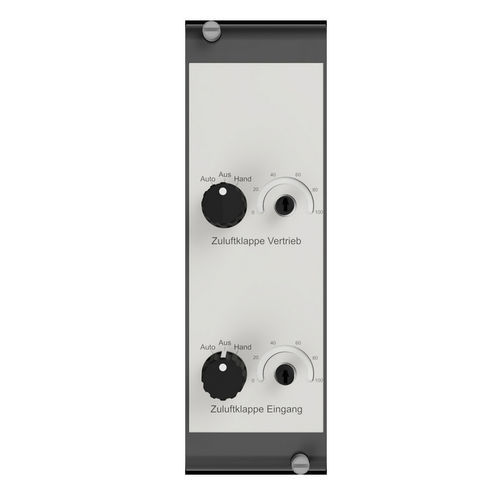

Analog output module 0–10 V for up to 2 actuators, equipped with a 10‑LED ring to indicate the analog value. Feedback indication is not coupled to the output voltage and can be driven externally via a terminal.

Operation
The module functions as a manual control level with an emergency mode for up to two analog outputs from controllers or DDC systems that require manual override. Each channel is selectable via the rotary switch labeled "Auto-Aus-Poti": in the "Auto" position the control system signal is active, in "Poti" the built-in potentiometer provides manual control.

Potentiometer and feedback
In "Poti" position the potentiometer allows continuous adjustment of the 0–10 V output. The feedback voltage present at the feedback terminal is shown qualitatively by the 10‑LED ring surrounding the potentiometer.

Connections and wiring
Terminals 23 and 43 provide 0 V DC (GND). Each output is rated for up to 20 mA. The "Auto" position of each switch is provided potential-free on a terminal. Local indication (Aus‑Poti) can be enabled by moving a jumper located below terminals 26–27.

Technical specifications

• Model: RAG1010-01
• Function: 0–10 V analog output module for manual control level with emergency function
• Number of outputs: up to 2 analog outputs
• Indicator: 10‑LED ring for qualitative display of analog value
• Feedback indication: externally terminal-controllable, not coupled to output voltage
• Rotary switch: "Auto-Aus-Poti" with Auto and Poti positions
• Potentiometer: continuous adjustment of 0–10 V in Poti position
• GND: terminals 23 and 43 = 0 V DC
• Output load capacity: up to 20 mA per output
• Auto position: potential-free on terminal
• Local indication (Aus‑Poti): selectable via jumper under terminals 26–27
• Product number / SKU: 00003420
• Weight: 0.141 kg
