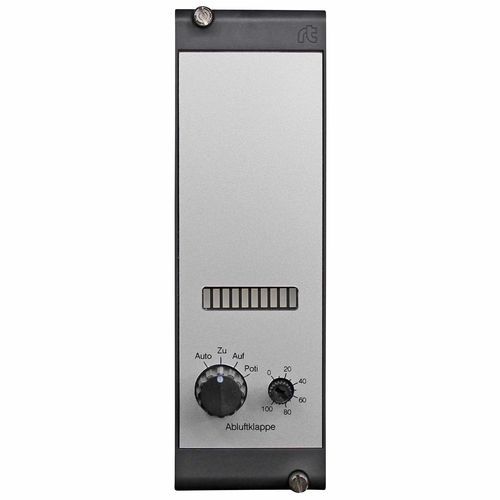

Analog output module RAG0015-01

analog signal converterfor control cabinetspanel-mounted

Product information — RAG0015-01 Analog output module 1x 0-10 V with feedback bar indicator (terminal-mounted)
The analog output module provides a manual control level with emergency function for 1 to 2 analog outputs of controllers or DDC systems that require local override. It is designed for integration into HVAC and industrial control panels to enable safe hand operation and override of automated outputs.

Functions and operation
The rotary selector switch (Auto–Close–Open–Poti) preselects the operating mode for each output; in Auto the controller signal is passed through. In the Poti position the built-in potentiometer allows continuous adjustment of the output from 0 to 10 V. The bar indicator is not linked to the output voltage and must be driven externally. Terminal 43 provides a 10 V DC supply for frost protection or auxiliary devices. Each output supports a load of up to 10 mA. The automatic position of each switch is available potential-free at a terminal. If local signalling (Close–Open–Poti) is required, specify the type suffix -H0.

Variants

• RAG0015-01 - 1 analog output
• RAG1515-01 - 2 analog outputs

Technical specifications

• Manufacturer: romutec Steuer- und Regelsysteme GmbH
• Product number / SKU: 00001108
• Type / Model: RAG0015-01 (1 analog output); RAG1515-01 (2 analog outputs)
• Output: 0-10 V analog output(s)
• Output load capacity: up to 10 mA per output
• Terminal 43: 10 V DC supply (e.g. for frost protection)
• Controls: rotary selector switch (Auto–Close–Open–Poti); built-in potentiometer (0-10 V) in Poti position
• Bar indicator: externally driven, not directly coupled to output voltage
• Automatic position: potential-free available at a terminal
• Local indication: specify type suffix -H0 if required
• Weight (meta): 0.125 kg
• ReleaseDate (meta): 2026-04-28
