Analog output module RAG0015H0-01

for integration

Product information

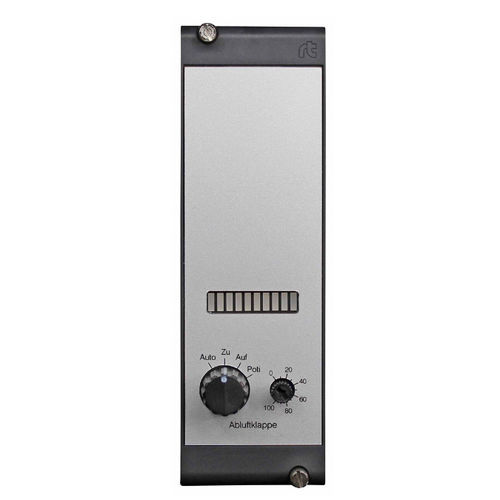

The RAG0015H0-01 analog output module provides a manual control level with emergency function for 1 or 2 analog outputs (0-10 V) of controllers or DDC systems that must be overridden by manual operation. A rotary switch Auto-Zu-Auf-Poti preselects the output mode: Automatic (signal from the control system) or Poti (manual). In Poti position the integrated potentiometer continuously adjusts the output from 0-10 V. The bar indicator is not coupled to the output voltage and can be driven externally. Terminal 43 provides 10 V DC for functions such as frost protection. Each output is loadable up to 10 mA. The automatic position of each switch is available potential-free on a terminal. Specify type suffix -H0 when local feedback (Zu-Auf-Poti) is required.

Variants

• RAG0015-01 - 1 analog output
• RAG1515-01 - 2 analog outputs

Features

• Manual control level with emergency function for 1 or 2 analog outputs
• Rotary switch Auto-Zu-Auf-Poti to preselect operating mode (Automatic = signal from controller, Poti = manual)
• Integrated potentiometer for continuous 0-10 V adjustment (Poti position)
• Bar indicator for display (not coupled to output voltage; externally switchable)
• 10 V DC available at terminal 43 (e.g. frost protection)
• Outputs loadable up to max. 10 mA
• Automatic position of each switch provided potential-free on a terminal
• Type suffix -H0 for local feedback (Zu-Auf-Poti)

Technical data

• Manufacturer: romutec Steuer- und Regelsysteme GmbH
• Product number / SKU: 00001992
• Model: RAG0015H0-01
• Weight: 0.125 kg
• Release date: 2026-04-28
• Supply: 24 V AC/DC ±10%
• Max. current consumption: 240 mA
• Input/Output signal: 0-10 V (input impedance 100 kΩ)
• Outputs: 0-10 V to field device
• Output loadability: max. 10 mA per output
• Output resistance: 100 Ω
• 1x 10 V constant, max. 10 mA (terminal 43)
• Switch ratings: 20 VA / 20 W; switch voltage max. 50 V AC/DC; switch current 200 mA; idle current max. 1 A; lifetime ≥ 50,000 cycles
• Operating temperature: 0...50 °C; storage: -20...+70 °C; relative humidity 5...95 % non-condensing
• Protection class: IP40 (up to IP54 with cover)
• Dimensions: 19" width 8 TE (40.5 mm) x height 3 HE (129 mm) x depth <80 mm
• Connection terminals: 2.5 mm² pluggable, screw connection
• EMC / Standards: EN/IEC 61000-4-x (ESD, Surge, Burst) with specified test levels
