Analog control module RAG1717

output2-O

Product overview

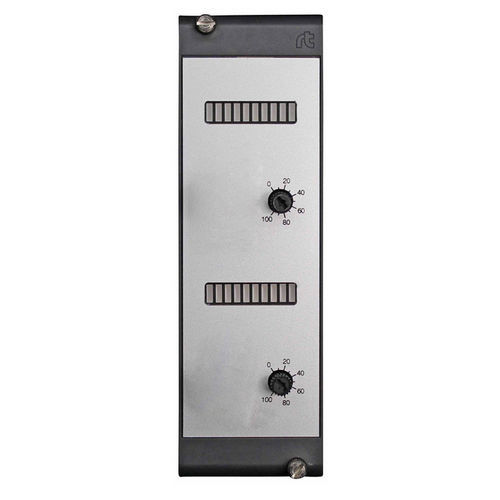

The RAG1717 is an analog setpoint module providing two independent 0–10 V outputs for actuator control. Each output is continuously adjustable via a front-panel potentiometer, and the current output level is indicated on a multi‑segment bar display. Terminal 43 supplies 10 V DC as a reference (e.g. for frost protection circuits). Each output can drive loads up to 10 mA.

Variants

• RAG0017 - 1 analog output
• RAG1717 - 2 analog outputs

Technical specifications

• Model: RAG1717
• SKU: 00001117
• Manufacturer: romutec Steuer- und Regelsysteme GmbH
• Output signal: 0–10 V (continuously adjustable via potentiometer)
• Display: multi‑segment bar display indicating output voltage
• Additional supply: 10 V DC at terminal 43 (e.g. for frost control)
• Maximum load per output: up to 10 mA
• Weight: 0.16 kg
• Release date: 2026-04-28

Applications

• Actuator and valve control in building and industrial automation
• Setpoint generation for PID controllers and control panels
• Integration in HVAC and frost-protection circuits

Installation and integration

The module is designed for direct integration into control systems. Connect outputs to analog inputs of controllers or actuators and use terminal 43 as a 10 V reference where required. Observe the 10 mA maximum load per channel when selecting connected devices.
