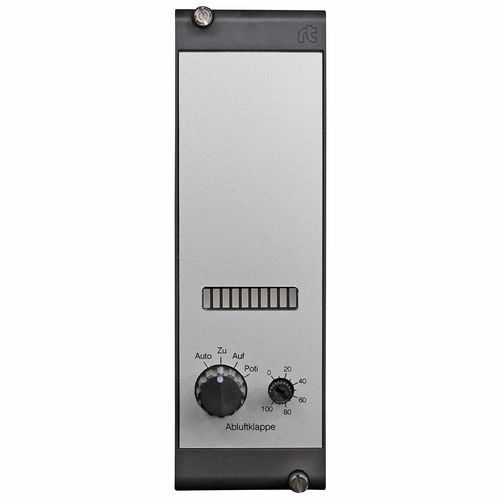

Analog output module RAG0015-H0

safetyPLCfor 19'' racks

Product description
The RAG0015-H0 is a manual analog output module for local override and emergency operation, providing 1 (RAG0015) or 2 (RAG1515) 0–10 V analog outputs for controllers or DDC systems. It includes a selector switch, an integrated potentiometer for direct setting and a bar indicator to visualise the output level.

Functions
The selector switch (Auto / Close / Open / Poti) preselects the mode: in Auto the controller signal determines the output. In Poti position the built-in potentiometer sets the output continuously from 0–10 V. The current output voltage is visible on the bar indicator. Terminal 43 provides a 10 V DC supply (e.g. frost protection). Each output can be loaded up to 10 mA. The Auto position of each switch is routed potential-free to a terminal. The type suffix -H0 is used when local feedback (Close-Open-Poti) is required.

Variants

• RAG0015 - 1 analog output
• RAG1515 - 2 analog outputs

Technical specifications

• Model: RAG0015-H0
• Output voltage: 0–10 V
• Number of analog outputs: 1 (RAG0015) or 2 (RAG1515)
• Max. load per output: up to 10 mA
• Control: selector switch "Auto / Close / Open / Poti"
• Potentiometer: built-in, continuously adjustable 0–10 V (Poti position)
• Bar indicator: visual display of the output voltage
• Terminal 43: 10 V DC available (max. 10 mA)
• Auto position: potential-free on terminal
• Type suffix: -H0 for local feedback (Close-Open-Poti)
• Power supply: 24 V AC/DC ±10%
• Current consumption: max. 240 mA
• Inputs: 0–10 V from DDC/controller
• Input resistance: 100 kΩ
• Output resistance: 100 Ω
• Switch ratings: 20 VA / 20 W; max. switching voltage 50 V AC/DC; switching current 200 mA; idle current max. 1 A; lifetime ≥ 50,000 cycles
• Protection class: IP40 (with transparent cover up to IP54)
• Dimensions: 19" device — width 8 TE (40.5 mm), height 3 HE (129 mm), mounting depth < 80 mm
• Connections: 2.5 mm² pluggable screw terminals
• Operating temperature: 0…50°C; Storage: -20…+70°C; Relative humidity: 5…95% non-condensing
• EMC tests: EN 61000-4-2 / EN 61000-4-5 / EN 61000-4-4 (ESD, Surge, Burst)
• Product number (SKU): 00001750
• Weight: 0.12 kg
• Manufacturer: romutec Steuer- und Regelsysteme GmbH
• Release Date: 2026-04-28
