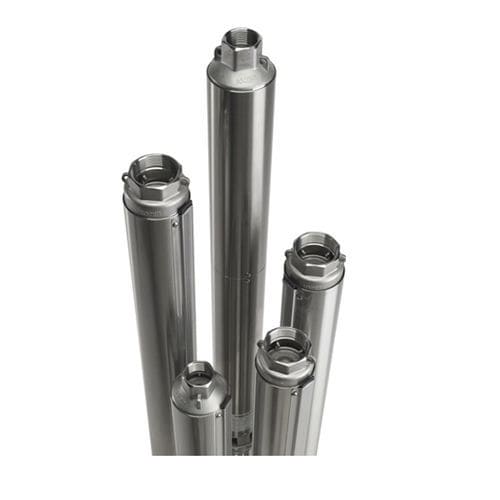

Radial pump 4ES series

waterwith electric motorsubmersible

Description
Radial and mixed-flow multistage submersible borehole pumps with an incorporated retaining (check) valve and stainless-steel external casing (AISI 304). Available in the Green line range, Series 4ES, covering flows from 2,4 to 24 m3/h and heads up to 322 m (50Hz).

Applications

• Water supply networks
• Fire-fighting systems
• Groundwater abstraction
• Irrigation systems
• Domestic and municipal water supply

Performance (50Hz)
Series | CAPACITY UP TO (50Hz) | HEAD UP TO (50Hz) | POWER UP TO (50Hz)
4ES2 | 2,4 m3/h | 234 m | 1,5 kW
4ES3 | 3 m3/h | 139 m | 1,1 kW
4ES4 | 4,2 m3/h | 208 m | 2,2 kW
4ES6 | 6 m3/h | 322 m | 4 kW
4ES8 | 9 m3/h | 221 m | 4 kW
4ES12 | 12 m3/h | 202 m | 5,5 kW
4ES15 | 15,6 m3/h | 163 m | 5,5 kW
4ES24 | 24 m3/h | 125 m | 5,5 kW

Characteristics / technical specifications

• Type: Radial and mixed-flow multistage submersible borehole pump
• Integrated retaining (check) valve in the discharge chamber
• External casing: stainless steel (AISI 304)
• Range: Green line, Series 4ES
• Available series and max performance (50Hz) listed above
• Suitable for potable and non-potable water applications (verify local regulations)
