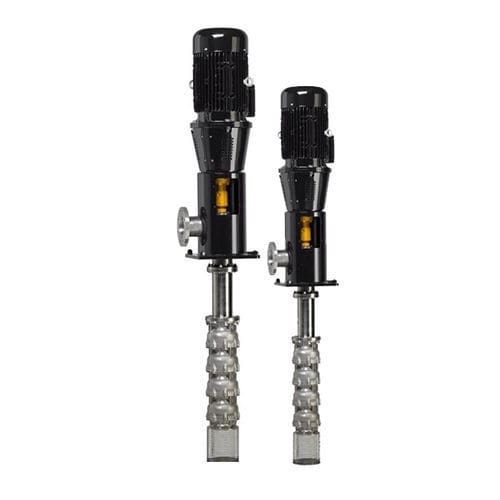

Centrifugal pump VX seriesfor wastewaterwateroil
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal
- Fluid
- water, for wastewater, for seawater, oil
- Operation
- with electric motor
- Priming
- normal priming
- Mobility
- stationary
- Domain
- for water treatment, for oil industry applications, for offshore applications, for marine applications
- Material
- stainless steel
- Other characteristics
- vertical, line shaft
- Flow
Max.: 144 m³/h
(5,085.31201 ft³/h)Min.: 66 m³/h
(2,330.768 ft³/h)- Head
196 m, 218 m, 240 m, 245 m
(643'00" , 715'02" , 787'04" , 803'09" )- Power
37 kW, 45 kW, 55 kW
(50.31 hp, 61.18 hp, 74.78 hp)
Description
Overview
Vertical lineshaft pumps 6" and 8" in AISI 316 cast stainless steel with flanged drive heads for IEC standard motors.
Range
Extreme
Applications
Performance table
Series | CAPACITY UP TO | HEAD UP TO | POWER UP TO
6VX24 (6") | 66 m3/h | 218 m | 37 kW
6VX44 (6") | 78 m3/h | 240 m | 45 kW
8VX14 (8") | 90 m3/h | 240 m | 55 kW
8VX24 (8") | 132 m3/h | 245 m | 55 kW
8VX34 (8") | 144 m3/h | 196 m | 55 kW
8VX44 (8") | 144 m3/h | 196 m | 55 kW
Technical features / specifications
Vertical lineshaft pumps 6" and 8" in AISI 316 cast stainless steel with flanged drive heads for IEC standard motors.
Range
Extreme
Applications
- Offshore platform
- Oil & Gas
- Power plants
- Water treatment
- Desalination & reverse osmosis systems
Performance table
Series | CAPACITY UP TO | HEAD UP TO | POWER UP TO
6VX24 (6") | 66 m3/h | 218 m | 37 kW
6VX44 (6") | 78 m3/h | 240 m | 45 kW
8VX14 (8") | 90 m3/h | 240 m | 55 kW
8VX24 (8") | 132 m3/h | 245 m | 55 kW
8VX34 (8") | 144 m3/h | 196 m | 55 kW
8VX44 (8") | 144 m3/h | 196 m | 55 kW
Technical features / specifications
- Material: AISI 316 cast stainless steel
- Sizes: 6" and 8" (vertical lineshaft)
- Drive heads: flanged, for IEC standard motors
- Available series: 6VX24, 6VX44, 8VX14, 8VX24, 8VX34, 8VX44
- Capacity up to: 144 m3/h (depending on series)
- Head up to: 245 m (depending on series)
- Power up to: 55 kW (depending on series)
