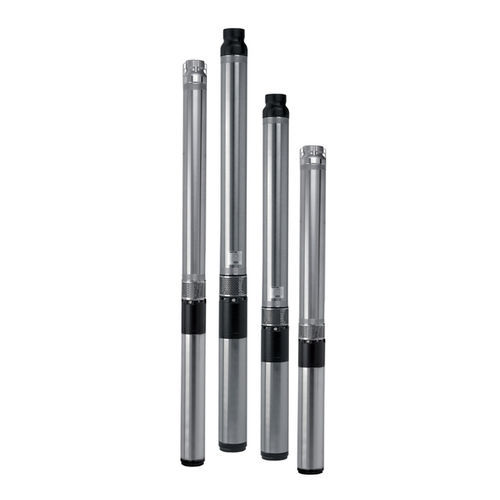

Centrifugal pump 6 series

waterelectricsubmersible

Product description
Radial and mixed-flow multistage electric borehole pumps with incorporated retaining valve and stainless-steel external casing. Designed for deep-well extraction where compact 6” construction and corrosion-resistant external casing are required.

Applications

• Irrigation systems
• Domestic water supply
• Water supply
• Groundwater supply

Series performance table (50Hz)
Series — TYPE — CAPACITY UP TO (50Hz) — HEAD UP TO (50Hz) — POWER UP TO (50Hz)
6ERCR01-6ERCX01 — Radial — 9.5 m3/h — 410 m — 9.2 kW
6ERCR1-6ERCX1 — Radial — 13.5 m3/h — 395 m — 13 kW
6ERCR2-6ERCX2 — Radial — 18 m3/h — 410 m — 16.5 kW
6ERCR3-6ERCX3 — Radial — 25.5 m3/h — 415 m — 20 kW
6ERCR4-6ERCX4 — Radial — 36 m3/h — 350 m — 22 kW
6EC2-6ECX2 — Mixed-flow — 60 m3/h — 280 m — 30 kW
6EC4-6ECX4 — Mixed-flow — 90 m3/h — 190 m — 30 kW

Available documentation
Technical Brochure; 50 Hz Technical Catalog (restricted access); 60 Hz Technical Catalog (restricted access).

Characteristics / technical specifications

• Design: Multistage electric borehole pumps with incorporated retaining valve and stainless-steel external casing
• Hydraulic types: Radial and Mixed-flow
• Series and maximum performances (50Hz): see table above (6ERCR01-6ERCX01, 6ERCR1-6ERCX1, 6ERCR2-6ERCX2, 6ERCR3-6ERCX3, 6ERCR4-6ERCX4, 6EC2-6ECX2, 6EC4-6ECX4)
• Flow ranges (50Hz): from 9.5 m3/h to 90 m3/h depending on series
• Maximum head (50Hz): up to 415 m depending on series
• Maximum power (50Hz): up to 30 kW depending on series
• Documentation: Technical brochure and technical catalogs (some files may require restricted access)
