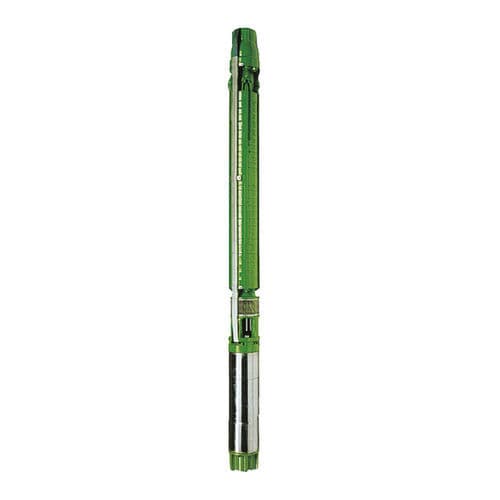

Radial pump 6ER series

waterelectricsubmersible

Product overview
Radial multistage submersible borehole pumps with integrated retaining valve in the discharge body. Designed for deep-well abstraction and long head applications. Part of the Green line range.

Applications

• Irrigation systems
• Water supply
• Groundwater extraction
• Municipal water networks

Available series and performance (50Hz)
Series | Capacity up to (50Hz) | Head up to (50Hz) | Power up to (50Hz)
6ER01 | 9.5 m3/h | 600 m | 13 kW
6ER1 | 13.5 m3/h | 600 m | 18.5 kW
6ER2 | 18 m3/h | 565 m | 22 kW
6ER3N | 25.5 m3/h | 535 m | 26 kW
6ER4N | 36 m3/h | 430 m | 30 kW

Technical documentation
Technical catalogs and performance curves available for 50 Hz and 60 Hz (access restricted / login required). Contact sales for dimension sheets and installation guidelines.

Characteristics / technical specifications

• Type: Radial multistage submersible borehole pump
• Feature: Integrated retaining (check) valve in discharge body
• Range: Green line
• Series: 6ER01, 6ER1, 6ER2, 6ER3N, 6ER4N
• Maximum capacity (50Hz): up to 36 m3/h
• Maximum head (50Hz): up to 600 m
• Maximum motor power (50Hz): up to 30 kW
