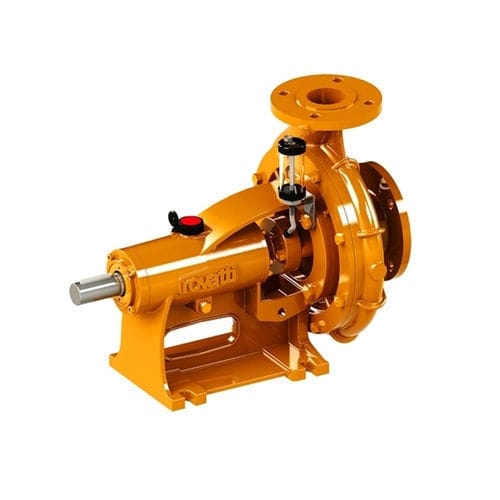

Centrifugal with volute pump SL series

slurrywastewaterfor effluents

Product overview
Horizontal bareshaft single-stage centrifugal pumps for handling wastewater, slurry and sewage containing solids and fibres, grey water, recycled and active sludges. Fitted with an open impeller and interchangeable wear plate. Axial inlet and volute outlet with an upward delivery flange that can be rotated laterally 90° to either side.

Line
Orange line

Applications

• Irrigation systems
• Livestock and farm systems
• Liquid transfer and pumping stations
• Filling of tanks and reservoirs

Performance / Range
Series — Capacity up to — Head up to — Power up to
SL2 — 114 m3/h — 49 m — 24.5 HP
SL3 — 192 m3/h — 118 m — 96 HP

Documentation
Technical brochure available. Technical catalog available (restricted access).

Technical characteristics

• Product type: Horizontal bareshaft single-stage centrifugal pump
• Product line: Orange line
• Designed for: Wastewater, slurry, sewage with solids and fibres, grey water, recycled and active sludges
• Impeller: Open impeller with interchangeable wear plate
• Inlet: Axial inlet
• Outlet: Volute outlet with upward delivery flange
• Delivery flange rotation: Laterally rotatable 90° to both sides
• Available series: SL2, SL3
• SL2 capacity up to: 114 m3/h
• SL2 head up to: 49 m
• SL2 power up to: 24.5 HP
• SL3 capacity up to: 192 m3/h
• SL3 head up to: 118 m
• SL3 power up to: 96 HP
