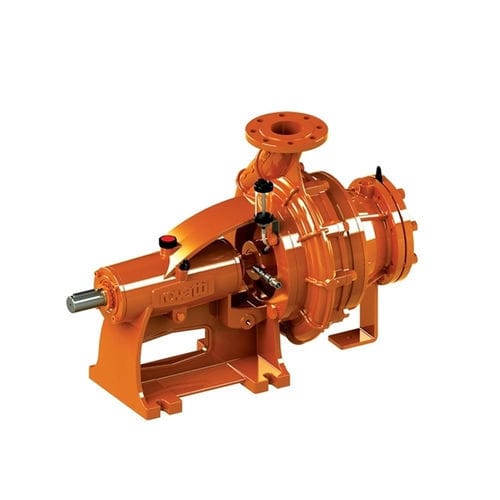

Centrifugal with volute pump SL series

slurrywastewaternormal priming

Overview
Horizontal bareshaft single-stage centrifugal pumps for handling wastewater, slurry and sewage containing solids and fibres, grey water, recycled and active sludges. Fitted with an open impeller with interchangeable wear plate and integrated chopper cone. Axial inlet and volute outlet with an upwards delivery flange that can be rotated laterally 90° to either side.

Range
Orange line

Applications

• Irrigation systems
• Livestock and farm installations
• Liquid transfer and drainage
• Filling of tanks and reservoirs

Series performance (table)
Series | Capacity up to | Head up to | Power up to
SL3K | 180 m3/h | 75 m | 76 HP
SL4K | 240 m3/h | 115 m | 121,5 HP

Characteristics / Technical specifications

• Type: Horizontal bareshaft single-stage centrifugal pump with chopper cone
• Impeller: open impeller with interchangeable wear plate
• Chopper: integrated chopper cone for cutting fibres and solids
• Inlet: axial inlet
• Outlet: volute outlet with upwards delivery flange; delivery flange rotatable 90° laterally on both sides
• Suitable fluids: wastewater, slurry, sewage with solids and fibres, grey water, recycled sludges, active sludges
• Available series: SL3K, SL4K
