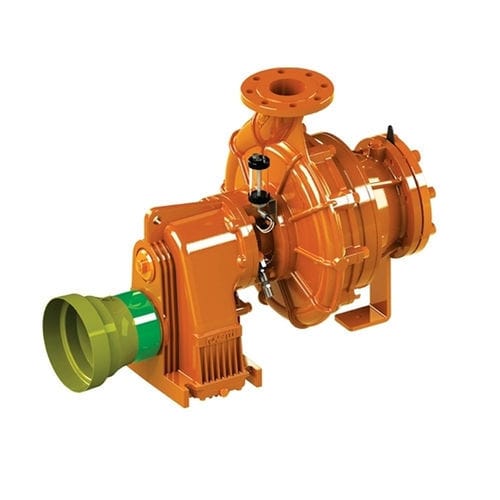

Centrifugal pump TL series

slurryfor wastewaterwastewater

Overview
Horizontal single-stage centrifugal pumps with overgear driven by cardan shaft of PTO. Designed for wastewater, slurry, sewage with solids and fibres, grey waters, recycled and active sludges. Equipped with open impeller with interchangeable wear plate and integrated chopper cone. Axial inlet and volute outlet with upwards delivery flange, delivery flange rotatable laterally 90° on both sides.

Series performance (summary)
Series | CAPACITY UP TO | HEAD UP TO | POWER UP TO
TL3K | 168 m3/h | 95 m | 76 HP
TL4K | 228 m3/h | 115 m | 121.5 HP

Applications

• Irrigation systems
• Livestock systems
• Liquid transfer
• Filling tanks and reservoirs

Features / Technical specifications

• Pump type: Horizontal single-stage centrifugal
• Drive: Overgear driven by cardan shaft of PTO
• Impeller: Open impeller with interchangeable wear plate
• Cutting feature: Integrated chopper cone
• Inlet / outlet: Axial inlet and volute outlet with upwards delivery flange
• Outlet orientation: Delivery flange laterally rotatable 90° on both sides
• Designed for: Wastewater, slurry, sewage with solids and fibres, grey waters, recycled and active sludges
• Available series: TL3K, TL4K (TL series)
• Performance highlights: TL3K up to 168 m3/h and 95 m head (up to 76 HP); TL4K up to 228 m3/h and 115 m head (up to 121.5 HP)
• Range designation: Orange line
