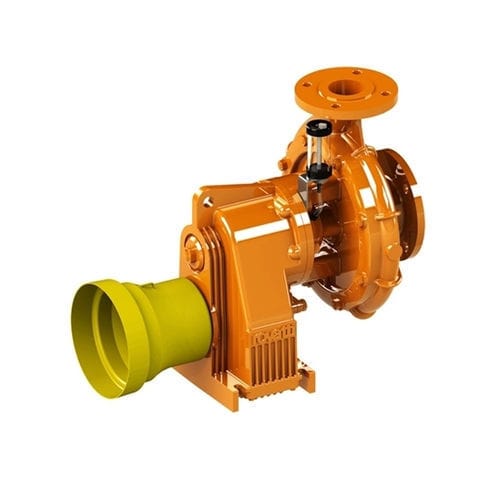

Centrifugal pump TL

slurrywastewaternormal priming

Overview
Horizontal single-stage centrifugal pumps of the TL series equipped with an overgear driven by the PTO via a cardan shaft. Designed for handling waste water, slurry and sewage containing solids and fibres, grey water, recycled and active sludges. Fitted with an open impeller and interchangeable wear plate. Axial inlet and scroll outlet with upwards delivery flange, rotatable laterally 90° to both sides.

Features

• Horizontal single-stage centrifugal design
• Overgear transmission driven by PTO through cardan shaft
• Open impeller with interchangeable wear plate for abrasive/ fibrous fluids
• Axial suction inlet for stable intake
• Scroll (volute) outlet with upwards delivery flange, laterally rotatable 90° both sides
• Suitable for waste water, slurry, sewage with solids and fibres, grey and active sludges

Applications

• Irrigation systems
• Livestock and manure handling systems
• Liquid transfer and site dewatering
• Filling tanks and reservoirs

Series / Performance
Series | CAPACITY UP TO | HEAD UP TO | POWER UP TO
TL | 192 m3/h | 130 m | 103 HP

Technical characteristics / specifications

• Series: TL
• Type: Horizontal single-stage centrifugal pump
• Drive: Overgear driven by PTO via cardan shaft
• Impeller: Open impeller with interchangeable wear plate
• Inlet / outlet: Axial inlet; scroll outlet with upwards delivery flange, laterally rotatable 90° both sides
• Intended fluids: Waste water, slurry, sewage with solids and fibres, grey waters, recycled and active sludges
• Maximum capacity: 192 m3/h
• Maximum head: 130 m
• Maximum power: 103 HP
• Range: Orange line
