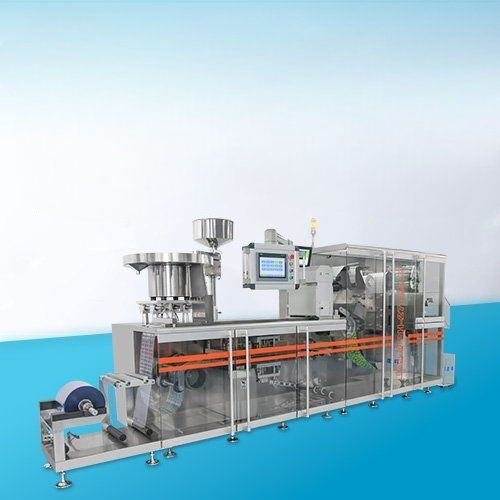

Automatic packaging machine DPH-270Max

blistertabletfor capsules

Overview
The full‑servo blister packing machine FSBP-27000 is a high‑speed, intelligent roller‑plate thermoforming blister packaging solution designed for large pharmaceutical and healthcare product manufacturers. The machine integrates six motion controllers and full servo axes to enable fast mold change, precise synchronization and one‑button start/stop for reduced labor and stable production.

Specifications

• Production capacity: up to 27,000 blisters per hour.
• Max forming area and depth: 250×250×12 mm, max depth up to 26 mm (custom options available).
• Standard plate: 80×57 mm.
• Electrical: 380V / 220V, 50Hz (customizable).
• Noise level: <65 dBA.

Main Features

• Full servo motor control for high speed, precise motion and stable line integration with pillow packers and cartoners.
• Modular partitioned design for high precision alignment, reduced blister squeeze and faster adjustments.
• Fast mold change system: whole‑mold replacement with positioning slots and quick‑connect pull‑out rails—complete set installable in ~10 minutes.
• PID multi‑section linear heating for accurate, energy‑efficient temperature control and rapid warm‑up.
• Optional MES/ERP connectivity and camera detection for real‑time monitoring and support for unattended operation.
• Integrated cooling plate and chiller for controlled part cooling post‑seal.

Main Parts

• Forming station
• Material feeder
• Unloading track
• Camera detection system
• Heat sealing station
• Cooling plate
• Chiller

Applications & Delivery

• Suitable products: tablets, capsules and similar solid oral dosage forms for pharmaceutical and healthcare sectors.
• Drive & control: six motion controllers and full servo control for each axis to ensure repeatable, high‑precision operation.
• Integration: designed for inline integration with downstream pillow packing and cartoning machines.
• Delivery: fast delivery options available (standard lead time stated: 15 days).
