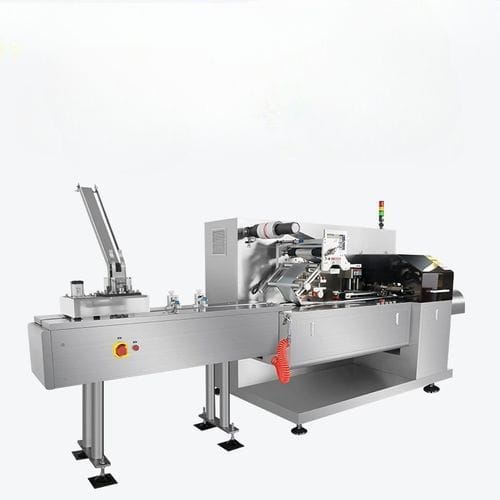

Horizontal wrapping machine RD-HPP-180

automaticfor the pharmaceutical industrywith conveyor

Product overview High-speed flow wrapping machine designed for continuous horizontal packaging of individual products using flexible film. Suitable for high-volume production lines, it forms a film tube around the product and seals ends to produce airtight packages ready for downstream handling.

How it works

• Continuous film feed: film roll mounted and transported through forming and sealing stations.
• Product feeding: products are fed into the formed film tube and conveyed continuously through the machine.
• Sealing and cutting: longitudinal and transverse sealing jaws create and separate individual packages using heat or ultrasonic sealing.
• Output: sealed packages exit the machine for downstream processes such as cartoning or case packing.

Main features

• High-speed continuous wrapping with precise longitudinal and transverse sealing.
• Servo-controlled feeding and alignment for repeatable positioning.
• Flexible adjustment to accommodate a wide range of product sizes and shapes.
• Compatible with heat or ultrasonic sealing depending on film and product requirements.

Main parts

• Servo feeding unit
• Film forming collar and penetration mechanism
• Servo cursor alignment
• Leveling mechanism
• Reciprocating knife seal unit
• Servo module and control panel

Specifications

• Capacity: 30-180 bags/min
• Maximum film width: 350 mm
• Voltage: AC 380V/50Hz (customizable)
• Power: 7.0 kW
• Working air pressure: 0.5-0.7 MPa
• Sealing methods: heat sealing or ultrasonic sealing (depending on material)

Applications

• Suitable for food, pharmaceutical, chemical and consumer goods production lines for primary packaging before cartoning.
