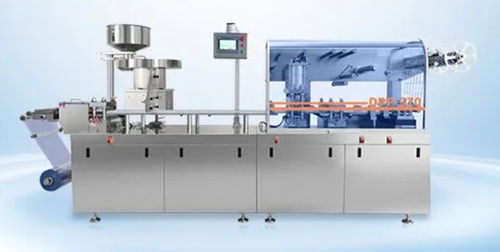

Blister packing machine DPP-370Max

automatictabletfor capsules

Product overview
The DPP-370Max is a pharmaceutical blister packing machine designed for continuous high-speed packaging of tablets, capsules, pills and other solid-dose products. It accepts Alu‑PVC and Alu‑Alu pack formats and provides a maximum output of up to 14,400 blisters per hour. The system performs fully automatic operations including material feeding, blister forming, product filling, heat sealing, batch coding, perforating, punching and finished blister discharge for stable, registered production.

Key process steps

• Material feeding
• Blister forming
• Product filling (tablets, capsules, pills)
• Heat sealing (Alu‑PVC or Alu‑Alu)
• Batch coding
• Perforating and punching
• Finished blister discharge and handling

Specification summary (from product page)
Production Capacity: 14,400 Blisters/h
Maximum Forming Area and Depth: 120 mm × 360 mm × 15 mm (maximum depth 26 mm, customizable)
PVC Thickness / Width: 360 × 0.25 mm ～ 0.8 mm
PTP Aluminum Foil Thickness / Width: 360 × 0.02 mm ～ 0.03 mm
Standard Stroke Range: 40 mm ～ 130 mm
Power Supply: 380V / 220V / 50Hz (customizable)

Main features & advantages

• 316L stainless steel product-contact parts and aluminum alloy structural components to meet GMP/cGMP/CE/FDA expectations.
• Mandrel positioning system at forming, sealing, embossing and cutting stations with external handwheel and digital readouts for fast, repeatable alignment.
• Quick-change modular mold system on aluminum guide rails with quick-lock slots enabling full mold replacement in ~10 minutes.
• Punching station fitted with DC53 cutting knives (imported) for high hardness, wear resistance and burr-free cutting.
• Imported servo-driven indexing for minimal positioning error, maximum indexing length up to 130 mm (customizable to 160 mm), and no backward movement on stops to prevent registration loss.
• Engineered to reduce setup and changeover time, minimize material waste during trials, and improve Overall Equipment Effectiveness (OEE).

Designed for

• Pharmaceutical CDMOs
• Contract packaging companies
• Nutraceutical manufacturers
• Clinical trial production
• Small and medium batch pharmaceutical manufacturing
• Multi-product healthcare factories

Notes on integration
The machine is intended for integration into automated lines (for example, blister‑to‑carton lines) to enable continuous blister forming, feeding, sealing, punching, transfer and cartoning within a single automated process.

Technical specifications

• Production Capacity: 14,400 Blisters/h
• Maximum forming area: 120 mm × 360 mm × 15 mm (max depth 26 mm, customizable)
• PVC film: width 360 mm; thickness 0.25 mm – 0.8 mm
• Aluminum (PTP) foil: width 360 mm; thickness 0.02 mm – 0.03 mm
• Standard stroke (indexing) range: 40 mm – 130 mm (customizable to 160 mm)
• Power supply options: 380V / 220V / 50Hz (customizable)
• Materials & hygiene: 316L stainless steel product-contact parts; aluminum alloy components
• Mold system: quick-change modular molds on aluminum guide rails; typical full mold change ≈ 10 minutes
• Punching: DC53 cutting knives (imported)
• Indexing: servo-driven indexing to minimize positioning error and prevent backward movement on stop
• Adjustment & alignment: external handwheel mandrel positioning across major stations with digital readouts
