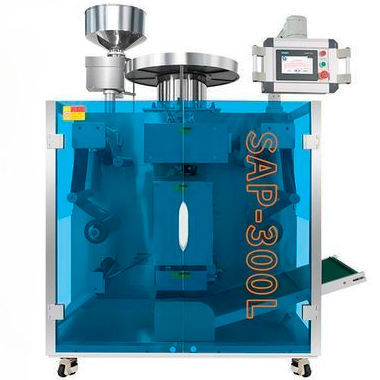

Automatic packing machine RD-SAP-300LPLC-controlledservo-drivenfilm
Add to favorites
Compare this product
Characteristics
- Operational mode
- automatic, PLC-controlled, servo-driven
- Type
- film, compact
- Applications
- tablet, for capsules
- Domain
- for the pharmaceutical industry
- Other characteristics
- high-speed, foil
- Throughput
4,800 p/h
Description
Product overview
Medium–high-speed strip packing machine designed for pharmaceutical tablets, capsules and pills. Suitable for light protection and moisture-sensitive products using soft double-aluminum foil. Compact footprint and lower cost option compared with blister packing while maintaining controlled packaging quality.
Automated processes
Applications
Designed to pack tablets, capsules and pills for pharmaceutical and nutraceutical applications. Soft double-aluminum foil provides a strong barrier against light, moisture and contamination for sensitive formulations. Offers a space- and cost-efficient alternative to blister lines.
Main features
Main parts
Technical specifications
Medium–high-speed strip packing machine designed for pharmaceutical tablets, capsules and pills. Suitable for light protection and moisture-sensitive products using soft double-aluminum foil. Compact footprint and lower cost option compared with blister packing while maintaining controlled packaging quality.
Automated processes
- Product feeding
- Powder screening
- Film pulling
- Product packing
- Cursor alignment
- Batch number printing
- Dual-direction embossing
- Cutting
- Waste edge recycling
Applications
Designed to pack tablets, capsules and pills for pharmaceutical and nutraceutical applications. Soft double-aluminum foil provides a strong barrier against light, moisture and contamination for sensitive formulations. Offers a space- and cost-efficient alternative to blister lines.
Main features
- Frame in stainless steel or carbon steel with tempered welded joints for chemical stability and corrosion resistance
- Servo-driven knife station for accurate cutting and minimal dimensional error
- Combined cutting and easy-tear notch station for controlled openability
- Drawer-style modular mold design enabling mold change in approximately 15 minutes by loosening screws
- Short lead time (delivery within 7 days as stated)
Main parts
- Working station
- PLC
- Feeder
- Heat sealing
- Longitudinal cutting
- Traction
- Waste recycling
- Punching
Technical specifications
- Max. capacity: 4,800 pcs/h
- Max. film width: 300 mm
- Power supply: 220V / 380V / 50Hz (customized)
- Total power: 3.8 kW; Main motor: 0.8 kW; Heating power: 3 kW
- Outline dimensions: 1,670 mm × 870 mm × 2,050 mm
- Packing types: tablets, capsules, pills
