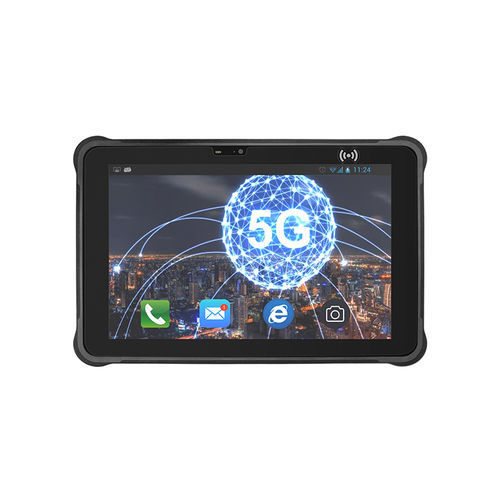

Android 10 tablet ST11-T

Android10.1"ARM® Cortex®-A55 Quad-core

Product Overview
The ST11-T is a 10.1-inch rugged Android tablet powered by the Unisoc T7510 octa-core processor. It offers 8GB RAM, 256GB internal storage and a 12000mAh battery for extended field operation. The device supports 5G connectivity, Wi‑Fi 802.11a/b/g/n/ac, Bluetooth 5.0 and NFC, and meets IP65 and MIL-STD-810G standards for dust, water and drop resistance. Optional UHF RFID and 1D/2D barcode scanner modules make it suitable for industrial logistics, asset management and field service applications.

Key Features

• Android 10.0 with Unisoc T7510 octa-core CPU (4×Cortex-A75 @2.0GHz + 4×Cortex-A55 @1.8GHz)
• PowerVR GM9446 GPU
• 10.1" IPS display, 1200×1920, 450 nits, 10-point touch with stylus and wet-hand support
• 8GB RAM / 256GB internal storage
• 12000mAh (3.8V / 45.6Wh) battery for extended use
• Cameras: 5MP front; 13MP rear with flash; barometer, gyroscope and other sensors
• Cellular: 5G (N41/N78/N79), 4G/3G/2G; GPS: GPS/BDS/GLONASS
• Connectivity: Wi‑Fi 802.11a/b/g/n/ac, Bluetooth 5.0, NFC (13.56 MHz, 1–3 cm)
• Interfaces: Type-C (OTG), USB 2.0, RJ45, RS232, SIM slot, TF card slot, earphone jack, DC-in, bottom/back pogo pins
• Rugged: IP65, 1.2 m drop resistance, MIL-STD-810G
• Optional modules: UHF RFID (M-500/M-301), 1D/2D barcode scanner (Honeywell N4680)
• Accessories available: charger, straps, docking station, vehicle mounts, magnetic keyboard

Application Scenarios

• 5G-enabled industrial connectivity and field terminals
• RFID-based asset tracking and inventory management
• Logistics, warehousing and transportation operations
• Field service, inspection and data collection in harsh environments

Technical Specifications (ST11-T)
OS: Android 10.0
CPU: Unisoc T7510 (Octa-core: 4×Cortex-A75 @2.0GHz; 4×Cortex-A55 @1.8GHz)
GPU: PowerVR GM9446
Memory: 8GB RAM / 256GB ROM
Display: 10.1" IPS, 1200×1920, 450 nits
Touch: 10-point, stylus & wet-hand support
Cameras: Front 5MP; Rear 13MP with flash
Battery: 12000mAh (3.8V / 45.6Wh)
WWAN: 5G (N41/N78/N79), 4G LTE, 3G WCDMA, GSM
GPS: BDS, GPS, GLONASS
Wi‑Fi: 802.11a/b/g/n/ac (2.4G/5G)
Bluetooth: 5.0
NFC: 13.56 MHz, ISO14443 Type A, 1–3 cm
Sensors: Light, proximity, barometric, G-sensor, accelerometer, gyroscope
I/O: Type-C (OTG) ×1; USB 2.0 ×1; RJ45 ×1; RS232 ×1; SIM ×1; TF ×1; Earphone ×1; DC-in ×1; bottom/back pogo pins
Ruggedness: IP65, 1.2 m drop, MIL-STD-810G
Optional: UHF RFID, 1D/2D barcode scanner, docking station, vehicle mounts
Dimensions: 268.9 × 176.8 × 18 mm
Weight: approx. 1090 ± 50 g
Operating Temp: -20°C to 55°C; Storage: -40°C to 60°C
Certifications: MIL-STD-810G, CE, FCC, 3C
