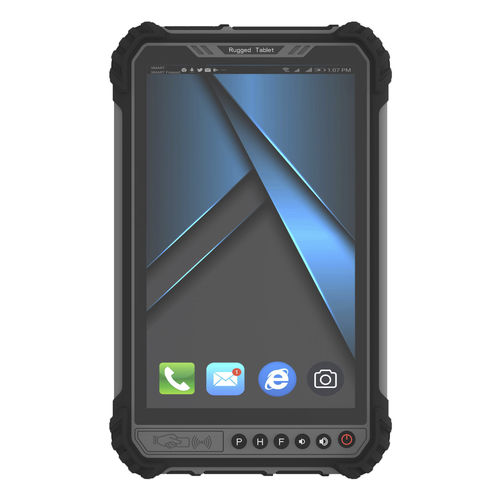

Android 11 tablet ST10-A

10.1"octa-coreARM® Cortex A53

Product Overview
The ST10-A is a rugged 10.1-inch industrial tablet running Android 11 and powered by an MTK MT6765 octa-core processor. It offers a 1200×1920 TFT display, expandable storage options, multi-band cellular connectivity, and long battery life. Designed for field operations, logistics and outdoor use, the device supports optional barcode scanning, various sensors and multiple industrial interfaces.

Key Features

• Android 11 OS with MTK MT6765 octa-core CPU (4×[email protected] + 4×[email protected])
• IMG PowerVR GE8320 GPU
• 10.1" TFT display, 1200×1920 (350 nits TYP / 400 nits MAX)
• RAM / ROM: 4GB / 64GB (optional 6GB / 128GB)
• Battery: 10000mAh (38.0Wh) standard; battery customization and OEM options available; charging time ~5H; typical usage up to ~19H (50% volume, 60% brightness, local 1080P video)
• Front 5MP and rear 13MP cameras; 10-point touch with stylus support
• Multi-band WWAN (GSM/WCDMA/FDD-TDD LTE), Wi‑Fi 802.11a/b/g/n/ac (2.4G/5G) and Bluetooth 5.0 (backward compatible)
• IP68 dust/waterproof rating; 1.2 m drop resistance; wide operating/storage temperature ranges
• Dual SIM (or SIM+TF), Type-C, standard USB, pogo pins, RJ45 via USB3.0 adapter, UART/RS232 options, DC charging jack and 3.5mm audio
• Optional modules: 1D/2D barcode scanner (NLS-N1 / N1-ER), fingerprint, UHF RFID, high-precision GNSS

Application Scenarios

• Industrial field operations and maintenance
• Mobile data collection and asset tracking
• Outdoor inspection and logistics
• On-site barcode/RFID scanning and verification

Technical specifications

• Model: ST10-A
• OS: Android 11
• CPU: MTK MT6765 Octa-core (4×[email protected] + 4×[email protected])
• GPU: IMG PowerVR GE8320
• Memory: 4GB RAM / 64GB ROM (6GB/128GB optional)
• Display: 10.1" TFT, 1200×1920, 350 nits (TYP) / 400 nits (MAX)
• Touch: 10-point capacitive, stylus supported
• Cameras: Front 5MP; Rear 13MP with autofocus and flash
• Battery & Power: 10000mAh / 38.0Wh; ~5H charge time; ~19H typical usage (conditions apply); customization available
• Cellular bands: multi-band GSM/WCDMA/FDD-TDD LTE (regional variants available)
• GNSS: BDS, GPS, GLONASS
• Wi‑Fi: 802.11a/b/g/n/ac (2.4G / 5G), Mobile AP
• Bluetooth: 5.0
• NFC: 13.56 MHz, ISO14443 A/B, ISO15693
• Audio: built-in speaker and microphone
• Sensors: magnetic sensor, G-sensor, orientation, accelerometer, gyroscope, ambient light, barometer (region/variant dependent)
• Interfaces: Type-C ×1; USB-A ×1; Pogo pins (rear and bottom); RJ45 via USB3.0 adapter; UART ×3; RS232 via adapter; DC-in (3.5mm) ×1; 3.5mm audio jack
• Buttons: V+/V-, Power, SOS (scanner variant: SOS becomes Scan)
• Barcode: Optional NLS-N1 / N1-ER (1D/2D)
• Dimensions & Weight: approx. 250 × 166 × 14.2 mm; ~800 ±50 g
• Certifications & Protection: IP68; 1.2 m drop resistance; MIL-STD-810G design, CE/FCC/ROHS compliance (depending on variant)
• Operating temperature: -20°C to 55°C; Storage: -40°C to 60°C
• Accessories: packaging box, wrist strap, adapter & charging cable, user manual, screws & screwdriver
