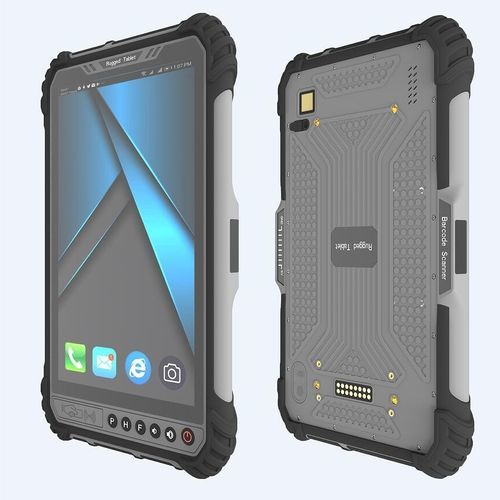

Android 12 tablet ST9-R2A

8"Rockchip RK358816 GB

Product Overview
The ST9-R2A is an 8-inch rugged tablet powered by a Rockchip RK3588 octa-core processor (4×[email protected] + 4×[email protected]) running Android 12. It offers flexible storage options (8GB/256GB, 16GB/256GB; 8GB/512GB, 16GB/512GB optional), an 8-inch 1200×1920 IPS display (430 nits TYP; 1000 nits optional), 5MP front and 13MP rear cameras with flash, a 5000mAh (7.7V / 38.5Wh) battery, 4G LTE, WiFi 6 and Bluetooth 5.0. With rich interfaces (HDMI, USB 3.0×2, USB 2.0×1, RS232, Type-C), IP65 dust/water protection, 1.2 m drop resistance (MIL-STD-810G) and support for expansion modules, it targets industrial IoT, multimedia and heavy-industry mobile terminal applications.

Key Features

• Android 12 with Rockchip RK3588 octa-core CPU (4×[email protected] + 4×[email protected])
• ARM Mali G610 GPU; 8-inch 1200×1920 IPS display (430 nits TYP; 1000 nits optional)
• Flexible storage: 8GB/256GB, 16GB/256GB (8GB/512GB, 16GB/512GB optional)
• 5MP front and 13MP rear cameras with flash; stylus and wet-hand touch support
• 4G LTE (SLM770A module), WiFi 6 (802.11ax), Bluetooth 5.0
• IP65 dust/water protection and 1.2 m drop resistance (MIL-STD-810G)
• Rich interfaces: HDMI, USB 3.0×2, USB 2.0×1, RS232, Type-C (OTG/fast charging)
• Optional modules: UHF RFID, 1D/2D barcode scanners, fingerprint reader

Technical Specifications (table view)
OS: Android 12.0
CPU: Rockchip RK3588 (Octa-core; Cortex-A76×4 @2.4GHz, Cortex-A55×4 @1.8GHz)
GPU: ARM Mali G610
RAM/ROM: 8GB/256GB, 16GB/256GB (8GB/512GB, 16GB/512GB optional)
Display: 8" IPS, 1200×1920; 430 nits (TYP); 1000 nits optional
Touch: 10-point touch; stylus support; wet-hand touch support
Cameras: Front 5MP; Rear 13MP with flash
Battery: 5000mAh (7.7V / 38.5Wh)
WWAN: LTE-FDD/TDD wide band support (SLM770A / EC25-AUX for North America)
GNSS: BDS, GPS, GLONASS
WiFi/Bluetooth: 802.11a/b/g/n/ac/ax (WiFi6); Bluetooth 5.0
NFC: 13.56 MHz, ISO/IEC 14443A/B, 15693 (1–3 cm)
Sensors: Light, Magnetic, Pressure, G-sensor, Proximity, Accelerometer, Gyroscope, Motor
Size/Weight: 236×144×17.4 mm; 700±50 g
Interfaces: Type-C (OTG/fast charge) ×1; USB 3.0×2; USB 2.0×1; RS232×1 (mini-USB); HDMI×1; SIM×1; TF×1; Earphone×1; DC×1
Ruggedization: IP65; 1.2 m drop (MIL-STD-810G); CE, FCC, 3C certifications
Operating Temp: -20°C to 55°C; Storage Temp: -40°C to 60°C

Application Scenarios

• Industrial IoT control and HMI
• Multimedia display and mobile kiosks
• Logistics, warehousing and inventory management
• Field service and maintenance terminals

Characteristics / Technical specifications

• Model: ST9-R2A, 8" rugged tablet, Android 12
• Processor: Rockchip RK3588 octa-core with ARM Mali G610 GPU
• Display: 8" IPS 1200×1920 (430 nits TYP; 1000 nits optional), 10-point touch, stylus support
• Memory: Configurations up to 16GB RAM / 512GB storage
• Cameras: 5MP front; 13MP rear with flash
• Battery: 5000mAh (7.7V / 38.5Wh)
• Connectivity: LTE, WiFi6, Bluetooth 5.0, GNSS
• Interfaces & expansion: HDMI, USB3.0×2, USB2.0×1, RS232, Type-C, SIM/TF, pogo pins
• Optional: UHF RFID, 1D/2D scanners, fingerprint module
• Rugged: IP65, 1.2 m drop, MIL-STD-810G; Operating -20°C to 55°C
