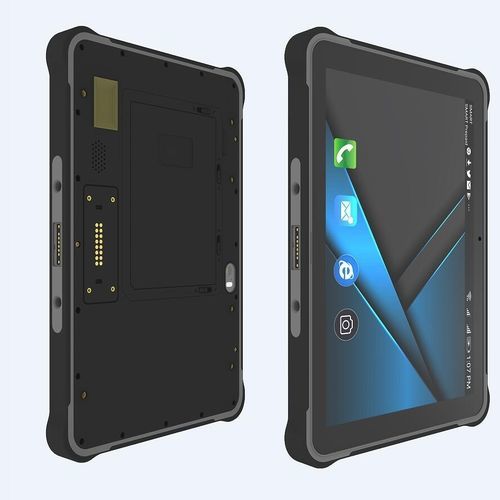

Android 13 tablet ST11-Q3

10.1"8 GBrugged

Product Overview
The ST11-Q3 is a 10.1-inch rugged Android 13 tablet powered by the Qualcomm QCM4490 5G octa-core SoC. It targets industrial and field applications, offering a high-brightness IPS display with multi-touch and stylus support, a dual-battery system for extended runtime, wide wireless connectivity including 5G and WiFi 6, and a range of I/O and optional modules for integration into IoT and enterprise workflows.

Key Features

• Android 13 with Qualcomm QCM4490 5G SoC (Octa-core: 2×Kryo Gold @2.4GHz + 6×Kryo Silver @1.95GHz)
• Adreno 613 GPU; 10.1" 1200×1920 IPS, 450 nits; 10-point touch; stylus and wet-hand touch support
• Memory/storage options: 8GB/128GB (also available 4GB/64GB or 8GB/256GB)
• Dual-battery design: main 12000mAh + secondary 2400mAh; supports 22W fast charging
• Cameras: 8MP front, 16MP rear with flash; comprehensive sensor suite (light, magnetic, pressure, gyroscope, accelerometer, proximity)
• Connectivity: 5G multi-band (SRM700 module), LTE/WCDMA, WiFi 6 (802.11ax), Bluetooth 5.2, NFC
• Ruggedness: IP65 dust/water protection, 1.2 m drop resistance, MIL-STD-810G; certified CE, FCC, 3C
• Rich I/O: Type-C (OTG), USB 2.0, RJ45, RS232, TF card slot, SIM slot, 3.5mm jack, DC input, bottom/back pogo pins
• Optional modules: UHF RFID, 1D/2D barcode scanner, fingerprint reader

Technical Specifications (ST11-Q3)

• OS: Android 13
• CPU: Qualcomm QCM4490 (Octa-core; Kryo Gold×2 @2.4GHz, Kryo Silver×6 @1.95GHz)
• GPU: Adreno 613
• RAM/Storage: 8GB/128GB (options: 4GB/64GB, 8GB/256GB)
• Display: 10.1"; 1200×1920; IPS; 450 nits; 10-point touch; stylus & wet-hand support
• Cameras: Front 8MP; Rear 16MP with flash
• Battery: Main 12000mAh (3.8V, 45.6Wh) + Secondary 2400mAh; 22W fast charge support
• WWAN: 5G bands (FDD & TDD), LTE, WCDMA; module SRM700
• GPS: BDS / GPS / GLONASS / Galileo
• WLAN/Bluetooth/NFC: WiFi 6 (802.11a/b/g/n/ac/ax), Bluetooth 5.2, NFC 13.56MHz (ISO/IEC 14443A/B, 15693)
• Audio: MIC sensitivity -32±2dB; speaker 8Ω 1.5W
• Sensors: Light, magnetic, pressure, G-sensor, proximity, accelerometer, gyroscope
• I/O: Type-C (OTG) ×1, USB2.0 ×1, RJ45 ×1, RS232 ×1, TF ×1, SIM ×1, 3.5mm earphone ×1, DC in ×1, bottom/back pogo pins
• Buttons: Volume +/-, Power, F (scan), configurable P/H
• Dimensions / Weight: 268.9 × 176.8 × 18 mm; approx. 1140 g
• Operating Temp: -20°C to 55°C; Storage: -40°C to 60°C
• Certifications: MIL-STD-810G, CE, FCC, 3C

Application Scenarios

• 5G-enabled Industrial IoT and edge computing
• Smart manufacturing and production line control
• Warehouse management and inventory control
• Remote monitoring, field service and asset inspection

Accessories & Certifications

• Standard: DC charger (5V 3A), carry strap, wrist strap, basic toolkit
• Optional: docking station, vehicle mounts, magnetic keyboard, barcode module (Honeywell N4680), UHF RFID modules (M-500 / M-301), fingerprint AFM60
• Compliance: IP65, 1.2m drop resistance design, MIL-STD-810G, CE/FCC/3C; RoHS-compliant materials
