Android 13 tablet ST9-A7

8"MediaTek MT67898 GB

Product overview

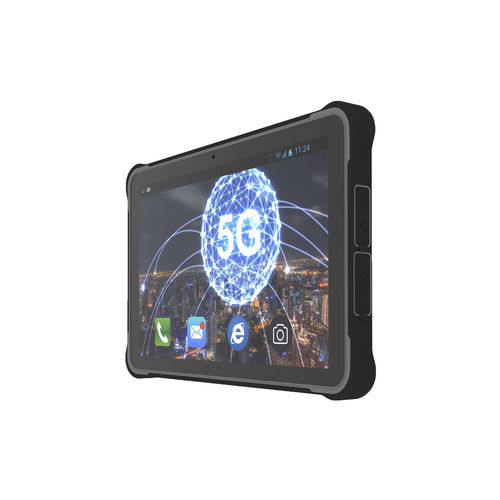

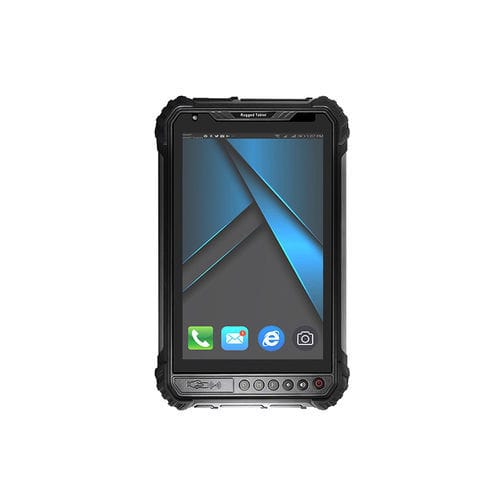

This rugged 8-inch tablet ST9-A7 runs Android 13.0 and is powered by a MediaTek MT6789 octa-core processor. It offers a 1200×1920 IPS display with 10-point touch, flexible memory options, a high-capacity 7800mAh battery, IP65 ingress protection and 1.2 m drop resistance. Designed for industrial and enterprise mobile tasks, it supports multi-mode wireless connectivity and a range of optional data-capture and identification modules for logistics, field service and IoT applications.

Key features

• Android 13.0 with MTK MT6789 octa-core CPU (2×[email protected] + 6×[email protected])
• 8-inch IPS 1200×1920 display; 10-point capacitive touch; stylus and wet-hand support
• Memory configurations: 8GB/256GB (standard); optional 12GB/256GB or 6GB/128GB
• 7800mAh battery; Bluetooth 5.0; dual-band Wi‑Fi (2.4/5GHz); NFC
• Protection: IP65 dust/water resistance and 1.2 m drop resistance (MIL-STD-810G)
• GNSS: BDS, GPS, GLONASS; multi-mode location support
• Optional modules: 1D/2D barcode scanners, UHF RFID modules, fingerprint readers
• Rich I/O and expansion: USB Type-C, USB 2.0×2, RS232 (mini-USB), SIM slot, TF card, earphone jack, DC input, bottom/back pogo pins for USB/charging/RS232

Technical specifications (summary)
OS: Android 13.0
CPU: MTK MT6789 (Octa Core; 2×[email protected], 6×[email protected])
GPU: Mali-G57 MC2
RAM/ROM: 8GB/256GB (12GB/256GB, 6GB/128GB optional)
Display: 8" IPS, 1200×1920; 350 nits (TYP), 390 nits (MAX)
Touch: 10-point touch, stylus and wet-hand support
Camera: Front 5MP; Rear 13MP with flash
Battery: 7800mAh, 3.8V
WWAN: 4G LTE / 3G / GSM (multi-band)
GPS: BDS / GPS / GLONASS (MT6631B combo)
Wi‑Fi: 802.11 a/b/g/n/ac (2.4G/5G); Wireless AP
Bluetooth: 5.0
NFC: 13.56 MHz; ISO/IEC 14443A/B, 15693
Sensors: light, magnetic, pressure, G-sensor, distance, accelerometer, gyroscope, motor
Size: 236 × 144 × 17.4 mm
Weight: 630 ± 20 g
Interfaces: Type-C ×1 (OTG), USB 2.0 ×2, RS232 (mini-USB) ×1, SIM ×1, TF ×1, earphone ×1, DC ×1, bottom/back pogo pins for USB/charging/RS232

Technical specifications (details)

• Model: ST9-A7
• OS: Android 13.0
• CPU: MTK MT6789 (2×Cortex-A76 + 6×Cortex-A55)
• Display: 8" IPS, 1200×1920, 10-point touch (stylus & wet-hand)
• Memory options: 8GB/256GB (standard), 12GB/256GB or 6GB/128GB (optional)
• Battery: 7800mAh (3.8V)
• Connectivity: 4G multi-band, dual-band Wi‑Fi, Bluetooth 5.0, NFC
• GNSS: BDS/GPS/GLONASS
• Protection: IP65; 1.2 m drop resistance; MIL-STD-810G
• Optional modules: 1D/2D barcode scanners (NLS-N1/M1/SE2707), UHF RFID (M-500/M-301), fingerprint readers (E064N/ZAZ-0A0/1020A)
• Ports: Type-C, USB 2.0×2, RS232 (mini-USB), SIM, TF, earphone, DC, pogo pins
• Operating temp: -20°C to 55°C; Storage temp: -40°C to 60°C
• Certifications: MIL-STD-810G, CE, FCC, 3C
